UL6500 figure B.1 Blunt Probe IEC60950 figure 2C SC-I23
The blunt probe is designed according to IEC60950 figure 2C, IEC60065 figure B1, IEC62151 figure 3, UL6500 figure B.1, IEC62368-1 figure V.3.
It is applied to check if the exposed parts of TNT circuits of information technology equipment has adequate protection.

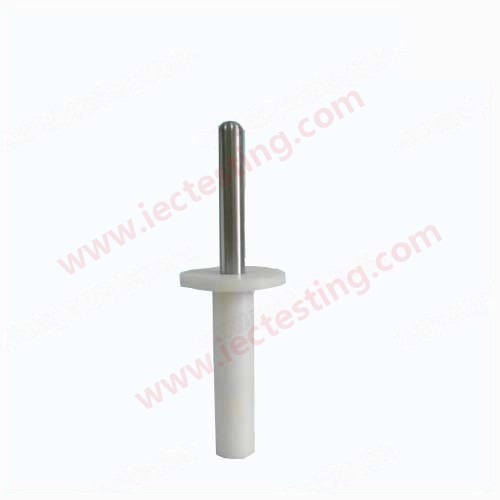

Product Images
Specification
| Length of the probe | 80mm±0.2mm |
| Radius of probe | R6＋0.05mm |
| Diameter of probe | φ12＋0.05mm |
| Diameter of stop | φ50mm±0.2mm |
| Material | Insulation material (probe), nylon (handle) |

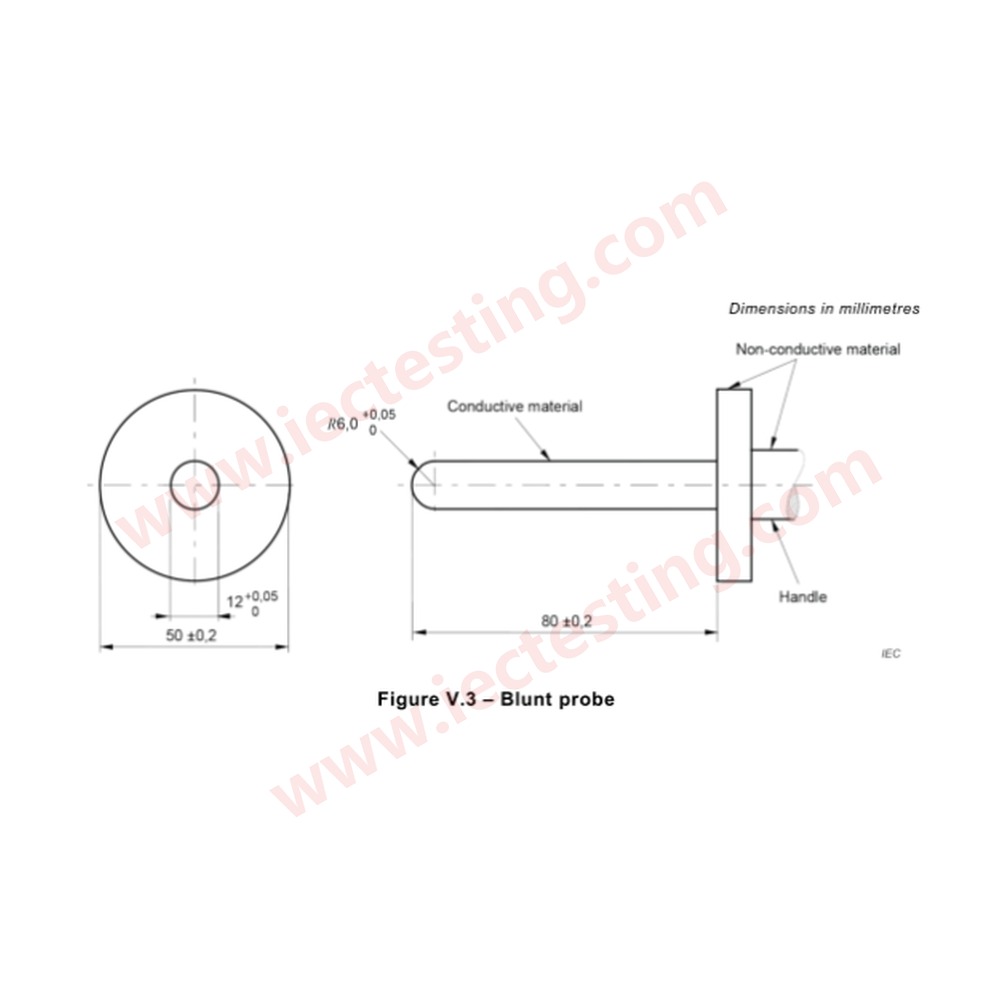

Standard Figure
