IEC 62841-4-6 2022 Figure 104 Young Adult Arm Test Probe Simulate Young Arm SC-50636F1
The Young Adult Arm Test Probe is used to simulate the way a product interacts with a young adult’s arm. This allows designers, engineers, and researchers to assess various aspects of the product, including comfort, usability, and functionality. By placing the probe in or on the product, they can evaluate factors such as reach, clearance, support, and range of motion. This ensures the product is designed to fit the target user group and reduces the chances of discomfort, strain, or injury.
Technical Specification
| Applied Standard | IEC 62841-4-6:2022 |
|---|---|
| Applied Figure | Figure 104 |
| Material | Metal And Nylon |
| Warranty | 1 Year |
| Minimum Order Quantity | 1 |
| Price | Customized |
| Packaging Details | Carton |
| Delivery Time | 15 Days |
| Payment Terms | T/T |
| Supply Ability | 100 sets per month |
Product information
This Young Adult Arm Test Probe conforms to the IEC 62841-4-6:2022 figure 104, etc.
Application
Simulate young arm, used to prevent arm and fingers from touching dangerous parts of hand-held power-operated garden blowers, vacuum blowers and other garden tools.

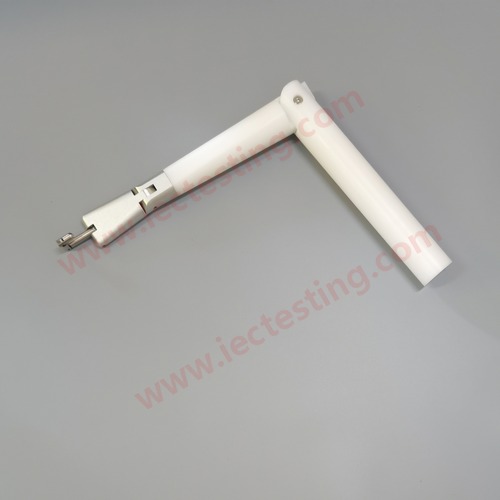

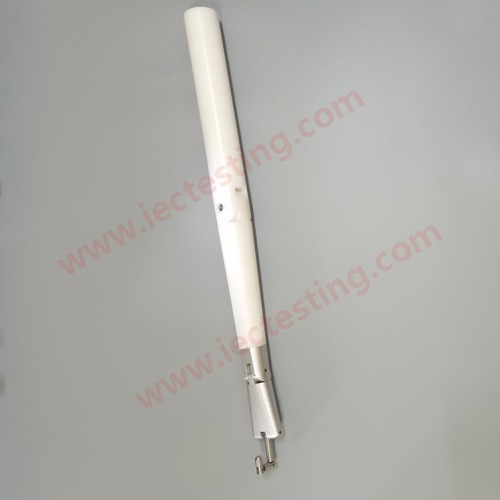

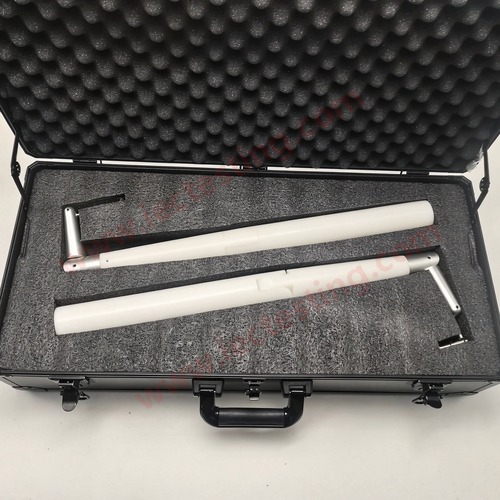

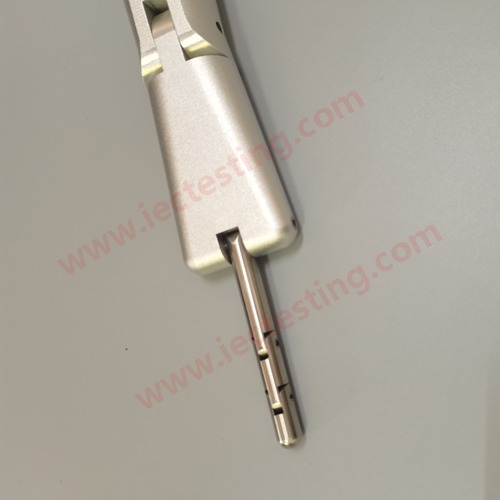

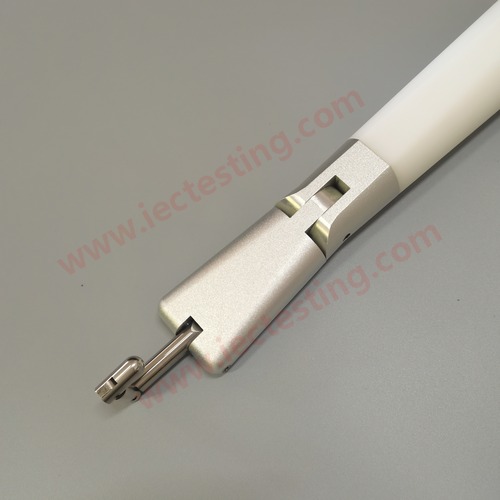

Product Images

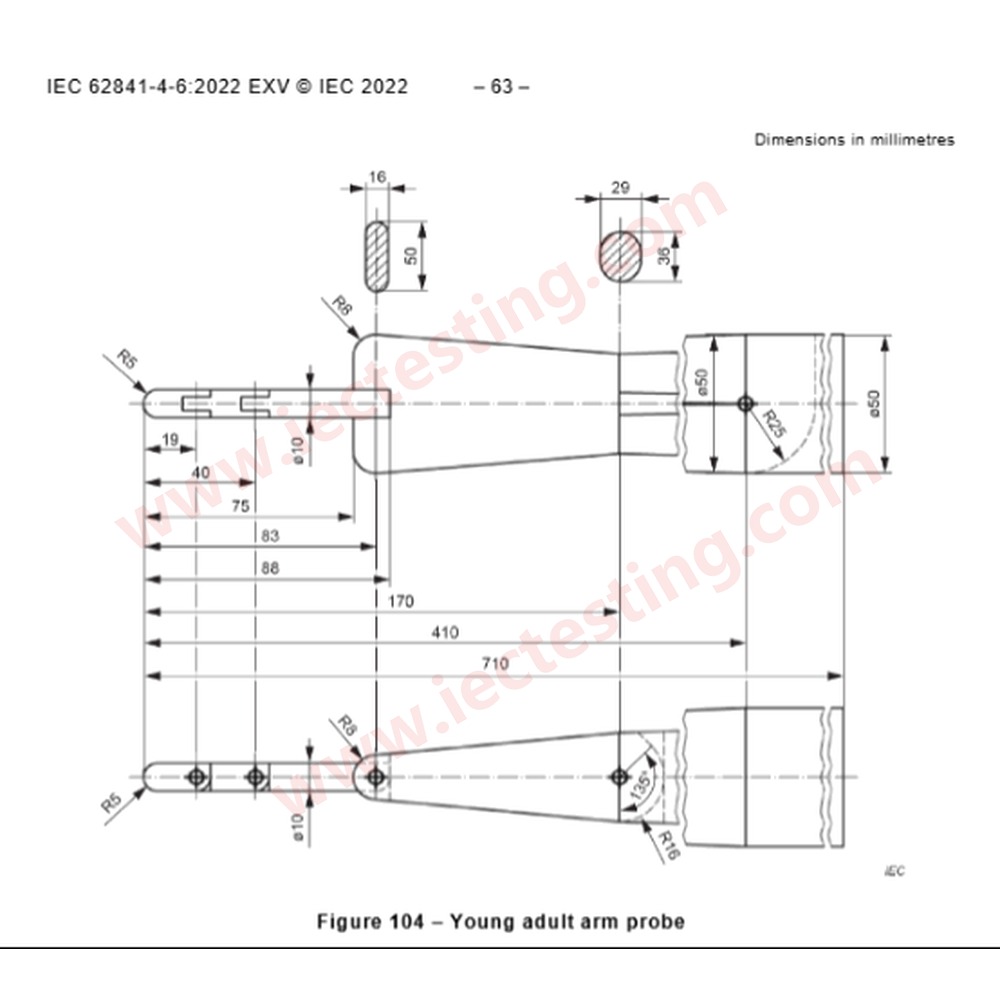

Standard Figure
