IEC 62841-4-6 2022 Figure 105 Adult Arm Test Probe For Safety Evaluation SC-50636F2
The Young Adult Arm Test Probe simulates how a product interacts with a young adult’s arm, helping designers, engineers, and researchers evaluate key factors such as comfort, usability, and functionality. By positioning the probe in or on the product, they can assess reach, clearance, support, and range of motion. This testing ensures the product is ergonomically optimized for its intended users, minimizing discomfort, strain, or injury risks.
Technical Specification
| Standard Compliance | IEC 62841-4-6:2022 |
|---|---|
| Applied Figure | Figure 105 |
| Probe Material | Metal |
| Handle Material | Nylon |
| Minimum Order Quantity | 1 |
| Price | Customized |
| Packaging Details | Carton |
| Delivery Time | 15 Days |
| Payment Terms | T/T |
| Supply Ability | 100 sets per month |
Standards
This youth arm conforms to the IEC 62841-4-6:2022 figure 105, etc.
Application
Replicates an adult arm to protect the user’s arm and fingers from dangerous parts of hand-held powered garden tools like blowers and vacuum blowers.

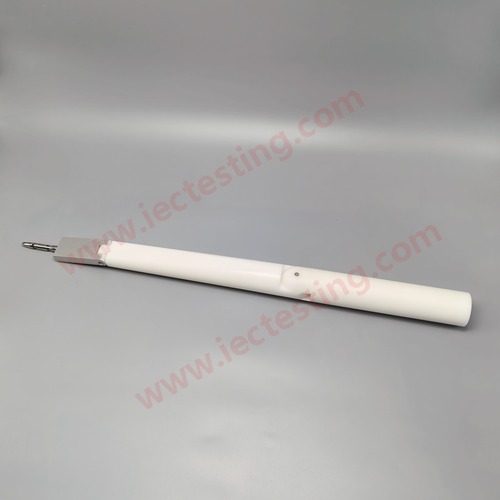

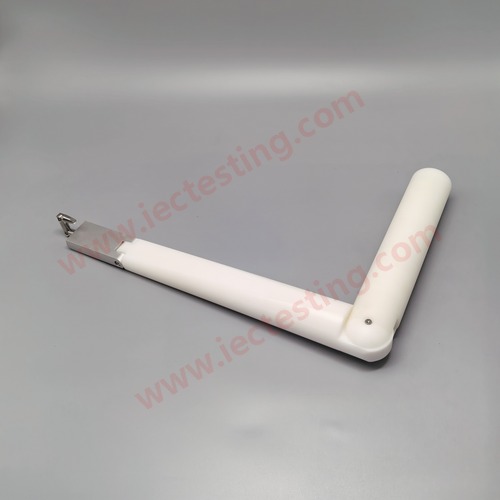

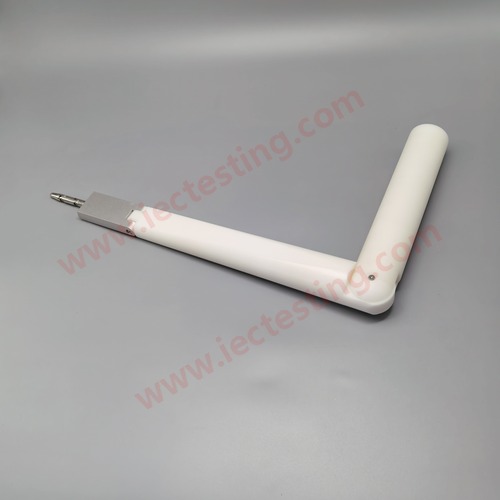

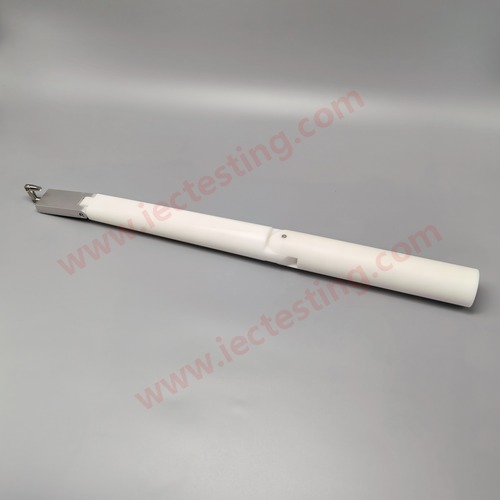

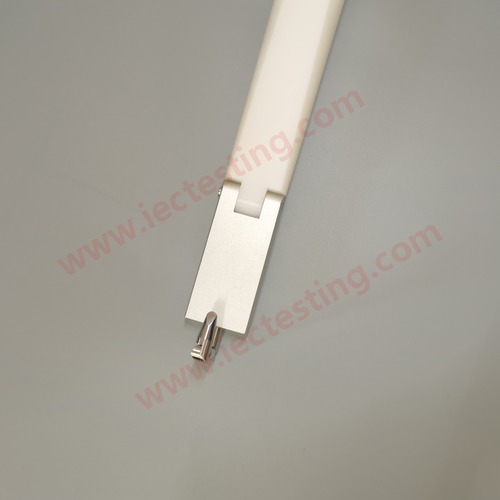

Product Images

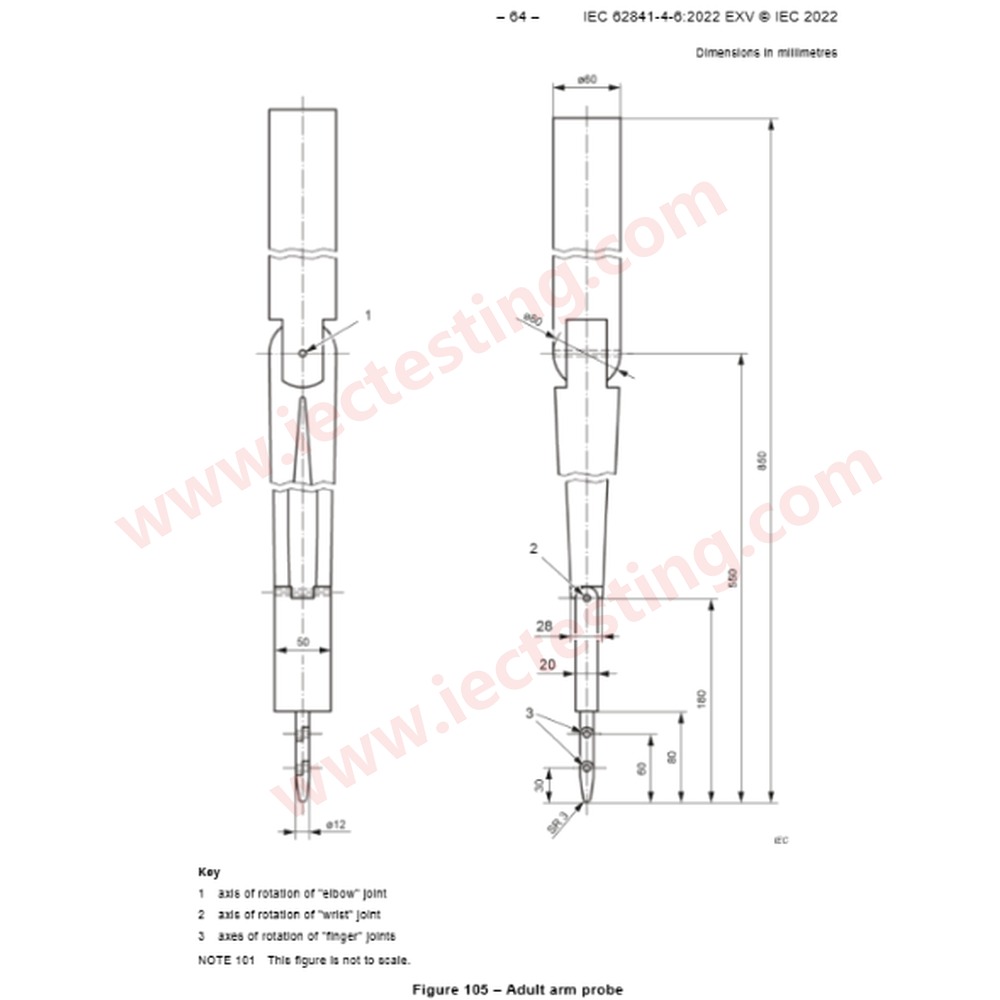

Standard Figure
