Test Sphere Probe 1 IEC61032 Figure 5 50mm Steel Ball SC-F51
Product information:
This test sphere probe conforms to IEC61032 figure 5 test probe 1, IEC60335, IEC60950, IEC60598, UL507 standards. It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 50mm or greater. It is also regarded as the steel ball for dropping impact test. It can be equipped with a lifting ring, and used for pendulum bob test after hanging with a rope. Steel balls with other diameters can be customized.
Technical parameters:
| Parameters / Model | SC-F51 | SC-F51-A | SC-F51-B | SC-F51-C | SC-F51-D | |
|---|---|---|---|---|---|---|
| Name | Name | Test probe 1 steel ball | 50mm dropping steel ball | 50mm steel ball with ring | 50.8mm dropping steel ball | 50.8mm steel ball with ring |
| Sizes | Sizes | SΦ50 +0.05/0 | SΦ50 | SΦ50 | SΦ50.8 | SΦ50.8 |
| Weight | Weight | —- | 500±25g | 500±25g | 535±25g | 535±25g |
| Standard | Standard | IEC61032/GB16842 | GB4943 | GB4943 | UL507 | UL507 |

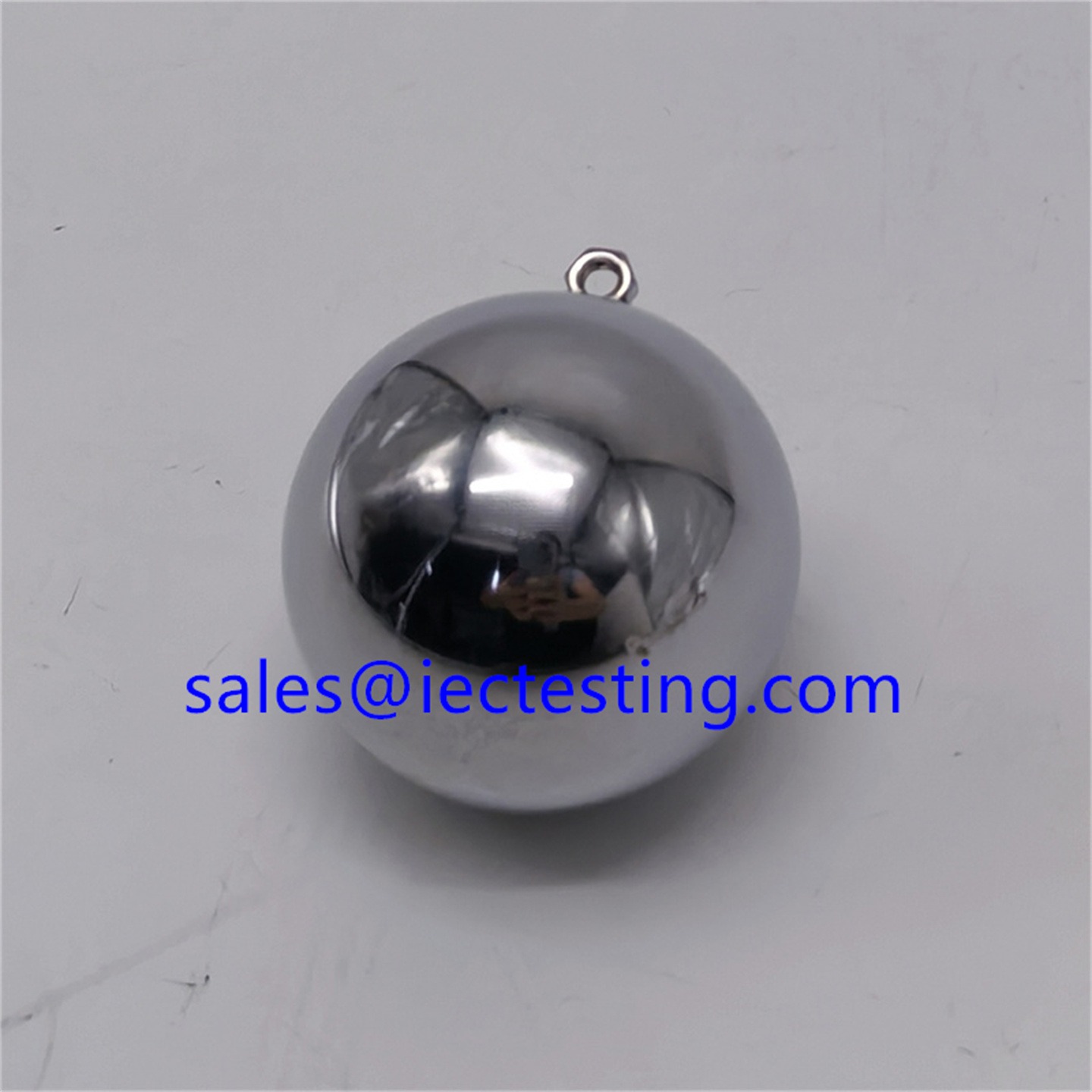

Product pictures:
