1 | IS1293 : 2019 Figure 42 |
|
|

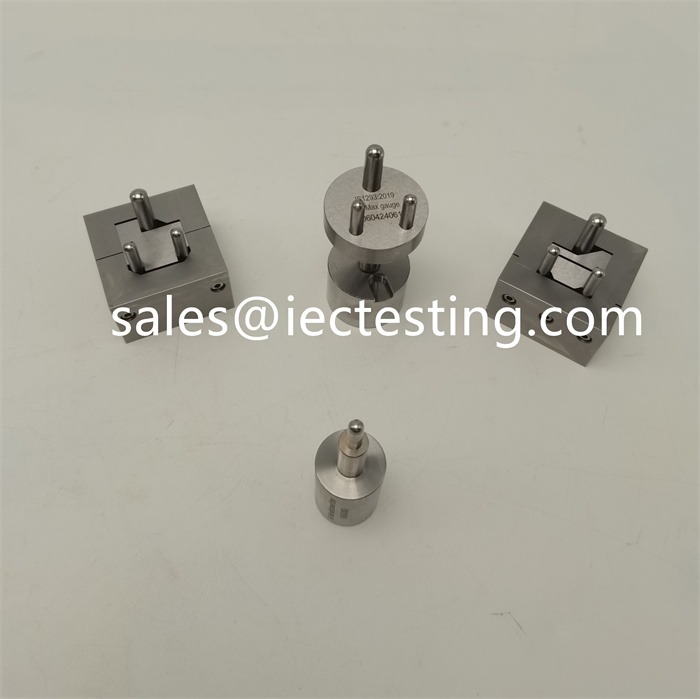

2 | IS1293 : 2019 Figure 43 | MAXIMUM ‘GO’ GAUGE FOR SOCKET-OUTLET | |
3 | IS1293 : 2019 Figure 44 | MINIMUM ‘GO’ GAUGE FOR SOCKET-OUTLET | |
4 | IS1293 : 2019 Figure 21 | APPARATUS FOR VERIFICATION OF MAXIMUM WITHDRAWAL FORCE
Include 10A and 16A test-plug /Total counter weight 54N |
|
5 | IS1293 : 2019 Figure 22 | GAUGE FOR THE VERIFICATION OF MINIMUM WITHDRAWAL FORCE |
![IS1293 GAUGE FOR SOCKET-OUTLET](https://www.iectesting.com/wp-content/uploads/2024/05/IS1293-2019-GAUGE-FOR-SOCKET-OUTLET-47-300x300.jpg)
![IS1293 GAUGE FOR SOCKET-OUTLET](https://www.iectesting.com/wp-content/uploads/2024/05/IS1293-2019-GAUGE-FOR-SOCKET-OUTLET-2-1-300x300.jpg)
![IS1293 GAUGE FOR SOCKET-OUTLET](https://www.iectesting.com/wp-content/uploads/2024/05/IS1293-2019-GAUGE-FOR-SOCKET-OUTLET-6-1-300x300.jpg)
![IS1293 GAUGE FOR SOCKET-OUTLET](https://www.iectesting.com/wp-content/uploads/2024/05/IS1293-2019-GAUGE-FOR-SOCKET-OUTLET-3-1-300x300.jpg)
