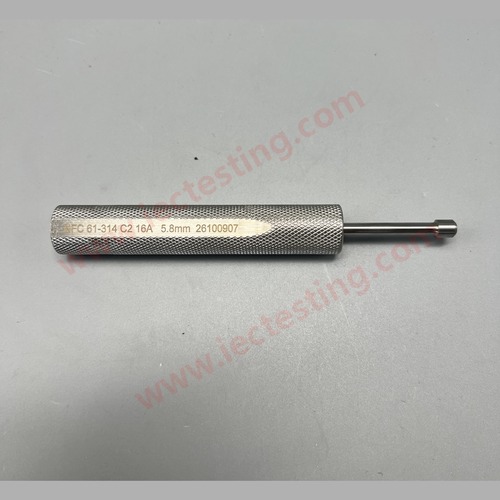

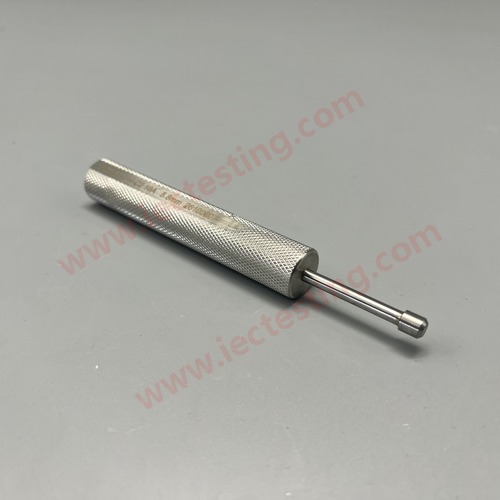

SC-NFC2-16A
Conforms To:

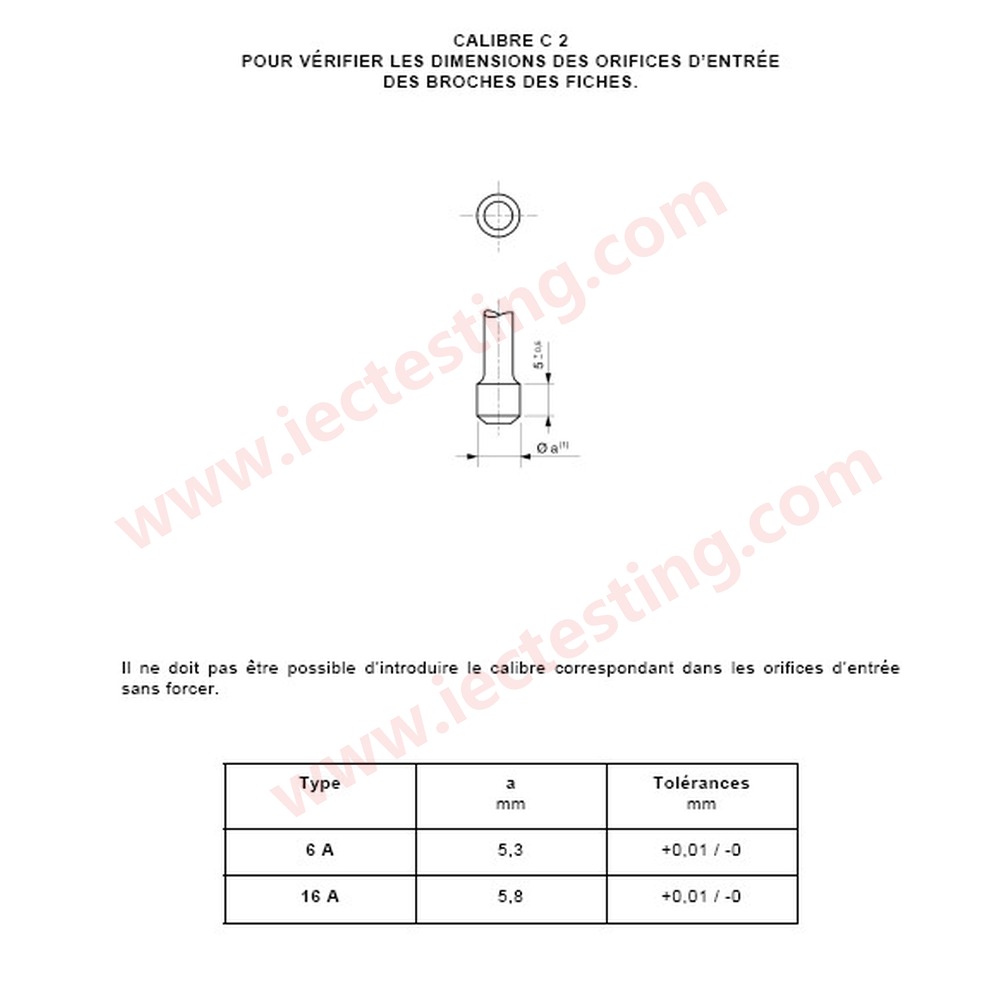

NF C61-314 C2 16A
Gauges for size of entry holes for plug pins 16A 5.8mm
NF C61-314 gauge list:
| French plug and socket gauge NF C61-314 | |||
| NO | Figure No. | Description | |
| 1 | SC-NFC1-6A | NF C61-314 C1 6A | 6A Gauge for checking impossibility of single-pole insertion of plugs |
| 2 | SC-NFC2-16A | NF C61-314 C1 16A | 16A Gauge for checking impossibility of single-pole insertion of plugs |
| 3 | SC-NFC2-6A | NF C61-314 C2 6A | Gauges for size of entry holes for plug pins 6A 5.3mm |
| 4 | SC-NFC2-16A | NF C61-314 C2 16A | Gauges for size of entry holes for plug pins 16A 5.8mm |
| 5 | SC-NFC3A | NF C61-314 C3A | Gauges for distance to point of first contact 6A 5.75mm |
| 6 | SC-NFC3B | NF C61-314 C3B | Gauges for distance to point of first contact 6A 5.0mm |
| 7 | SC-NFC3C | NF C61-314 C3C | Gauges for distance to point of first contact 6A 5.25mm |
| 8 | SC-NFC3D | NF C61-314 C3D | Gauges for distance to point of first contact 16A 5.45 mm |
| 9 | SC-NFC3E | NF C61-314 C3E | Gauges for distance to point of first contact 16A 5.60 mm |
| 10 | SC-NFC3F | NF C61-314 C3F | Gauges for distance to point of first contact 16A 5.75mm |
| 11 | SC-NFC4A | NF C61-314 C4A | Gauges for minimum opening contact tubes 3.94mm |
| 12 | SC-NFC4B | NF C61-314 C4B | Gauges for minimum opening contact tubes 3.80mm |
| 13 | SC-NFC4C | NF C61-314 C4C | Gauges for minimum opening contact tubes 4.60mm |
| 14 | SC-NFC4D | NF C61-314 C4D | Gauges for minimum opening contact tubes 4.86mm |
| 15 | SC-NFC5-6A | NF C61-314 C5 6A | Gauge for acceptance of two-pole plugs 6A |
| 16 | SC-NFC5-16A | NF C61-314 C5 16A | Gauge for acceptance of two-pole plugs 16A |
| 17 | SC-NFC6 | NF C61-314 C6 | Gauge for maximum opening of contact tubes 16A |
| 18 | SC-NFC7A-6A | NF C61-314 C7A 6A | Gauge for pin spacing 6A |
| 19 | SC-NFC7B-6A | NF C61-314 C7B 6A | Gauge for pin spacing 6A |
| 20 | SC-NFC7A-16A | NF C61-314 C7A 16A | Gauge for pin spacing 16A |
| 21 | SC-NFC7B-16A | NF C61-314 C7B 16A | Gauge for pin spacing 16A |
| 22 | SC-NFC-MAX6 | Maximum withdrawal force gauge 6A | |
| 23 | SC-NFC-MAX16 | FEUILLE DE NORME V | Maximum withdrawal force gauge 16A |
