SC-PN1486-1-6-20R
Product overview
PNS 1486-1:1996 (IEC 60884-1) Socket-outlet 6-20R(N) maximum withdrawal force gauge, model SC-PN1486-1-6-20R. The gauge is a precision steel socket-outlet gauge manufactured to the standard drawing “Dimension for Plug 6-20P(N) and Socket-outlet 6-20R(N)” and is used together with the plug gauge for the maximum withdrawal force test of Philippine plugs and socket-outlets.
Applicable standard: PNS 1486-1:1996 (IEC 60884-1) — Plugs and socket-outlets for household and similar purposes, Part 1: General requirements. The standard drawing “Dimension for Plug 6-20P(N) and Socket-outlet 6-20R(N)” gives the dimensions of the Philippine plug and socket-outlet system, including the U-shape and tubular pin shapes, the pin diameters, the pin centre distances and the plug body envelope.
Purpose: The maximum withdrawal force gauge is a precision steel gauge manufactured to the dimensions of the standard drawing. It is used for the maximum withdrawal force test of plugs and socket-outlets: the gauge is inserted into the socket-outlet under test (or the socket-outlet gauge is engaged with the plug under test) and an axial withdrawal force is applied; the force at which the gauge separates from the socket-outlet is compared with the limit specified by the standard.
Construction:
- Hardened steel gauge body, ground and lapped, hardness HRC 58 min.
- Pin dimensions and body envelope machined to the standard drawing
- Pin end radii controlled to the drawing values
- Body engraved with the standard designation and the product number
- Supplied with measured dimensional data and a calibration certificate
Technical parameters
- Model: SC-PN1486-1-6-20R
- Standard: PNS 1486-1:1996 (IEC 60884-1)
- Gauge type: Socket-outlet 6-20R(N) maximum withdrawal force gauge
- Pin shapes: U-shape (0.96 min. / 0.69 min.) and tubular shape
- Material: hardened steel, ground and lapped, HRC 58 min.
- Body stamp: PNS 1486-1 6-20R(N)
- Supplied with: measured dimensional data and calibration certificate
Key dimensions of the standard drawing
| Dimension | Value (mm) |
|---|---|
| Overall length of the plug | 21.41 max. |
| Length of the pins | 15.88 min. |
| Diameter of the L and N pins | 6.60 / 6.00 |
| Pin projection | 4.83 |
| U-shape pin width | 0.96 min. / 0.69 min. |
| Centre distance of the pins | 6.35 nom. |
| Distance from the pin tips to the reference face | 7.30 max. |
| Diameter of the earth pin | 6.09 min. |
| Earth pin projection | 5.69 min. |
| Maximum overall diameter | 12.55 max. |
| Width of the plug body | 12.01 / 11.75 |
| Depth of the plug body | 13.77 |
All dimensions in millimetres. The pin shapes covered by the drawing are the U-shape pin (0.96 min. / 0.69 min.) and the tubular shape pin; optional holes are provided on the plug body.

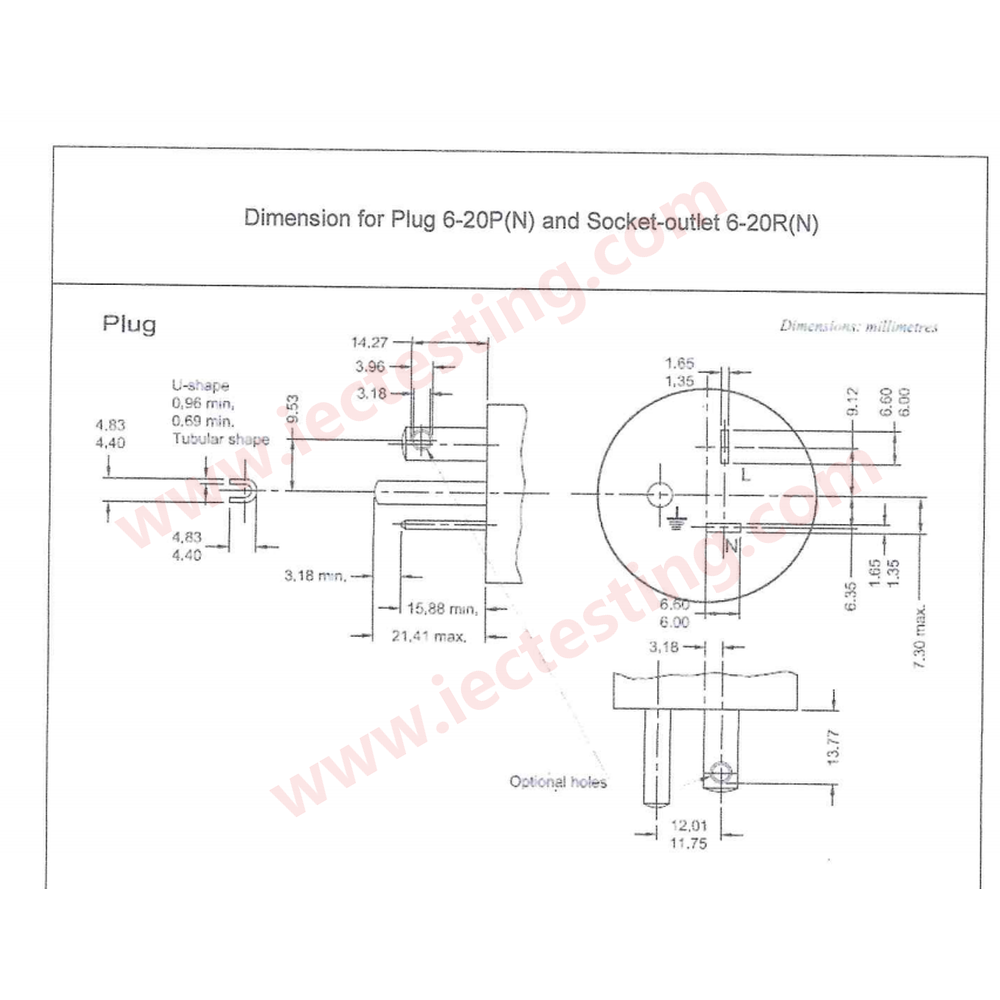

Standard drawing
