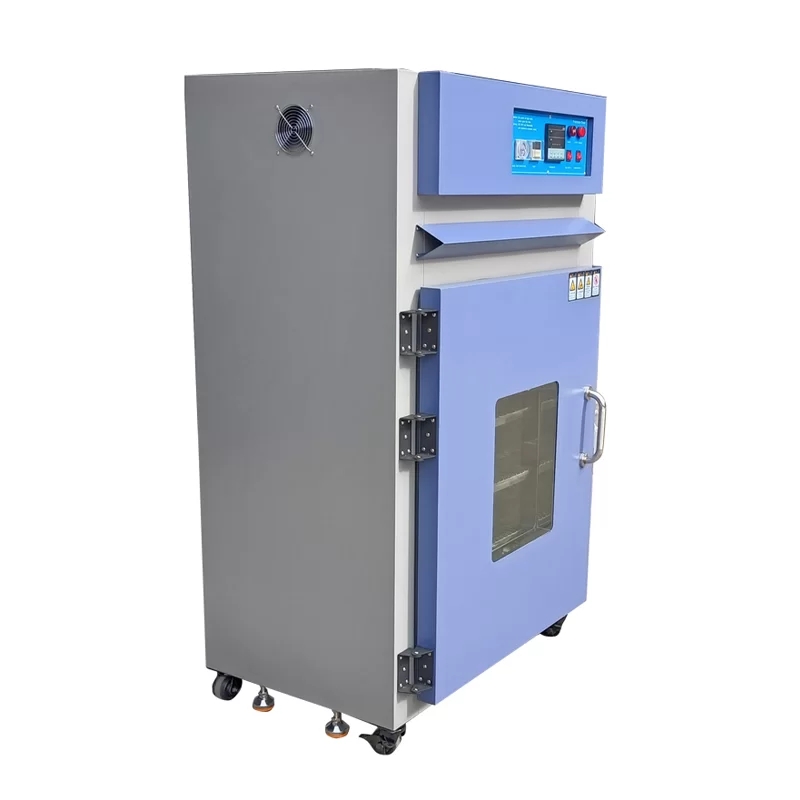

Drying Oven can provide a stable test space for pre- heating, drying, changes about physics and chemistry testing . It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.
Applications:
- Plastic Rubber Materials
- Adhesive Tape
- Food
- Pharm
- Daily-used chemical
Specification:
| Model | Inner Size | External Size | Temperature | Heating up | Accuracy | Uniformity | Power | Power of work |
|---|---|---|---|---|---|---|---|---|
| W*H*D(cm) | W*H*D(cm) | Range(°C) | Time | (°C) | (°C) | (kw) | ||
| JY-ETC-72L | 45×40×40 | 66×82×52 | (A-D)
A:200°C B:300°C C:400°C D:500°C |
RT~100°C About 10min |
±0.3 | ±1% | 220V Or 380V |
2.2 |
| JY-ETC-125L | 50×50×50 | 69×100×64 | ±0.3 | ±1% | 4.6 | |||
| JY-ETC-270L | 60×90×50 | 93×125×70 | ±0.3 | ±1% | 5.5 | |||
| JY-ETC-600L | 100×100×60 | 133×165×80 | ±0.3 | ±1% | 6 | |||
| JY-ETC-1000L | 100×100×100 | 120×160×120 | ±0.3 | ±1% | 8 |
Features:

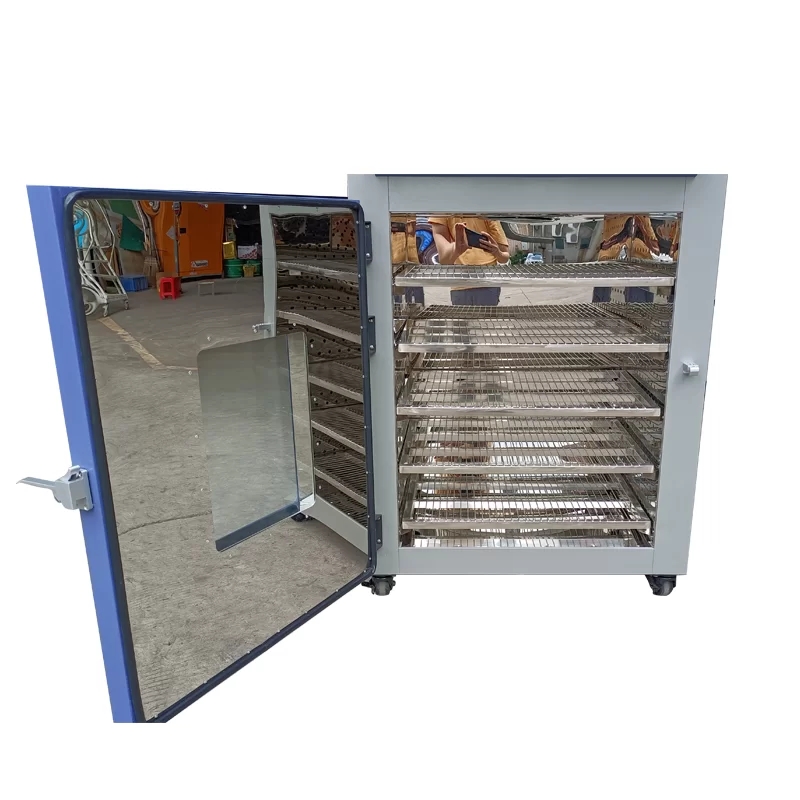

1.Outside SECC steel,fine powder coating treatment; Inner SUS#304 stainless steel.
2.Use new high temperature resistant long shaft motor
3.Turbine fan.
4.Silicone forced tight
5.Over temperature protection, super load automatic power system.
6.Circulation system: air force level cycle.
7.Heating system:PID+S.S.R.
8.The thermostat: PID microcomputer control,automatic constant temperature,temperature quickly compensation function
9.Timer: temperature to time, when the power failure alarm indication.
10.According to customer demand matching glass window can be customized according to customer specifications specified.
