Test Finger Probe B with Force IEC61032 Figure 2 IEC60529 SC-F2B-F
Product information:
Test finger probe SC-F2B-F conforms to IEC61032 figure 2 and IEC60529. It is the standard test finger probe B with force (10-30N applied through the dynamometer connection), intended to verify the basic protection against access to hazardous parts.
Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and amphenol connector at the end of the handle, or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Technical parameters:
| Parameters / Model | SC-F2B-F | |
|---|---|---|
| Name | Name | Standard test finger with force |
| 1 | 1 | 30±0.2 |
| 2 | 2 | 60±0.2 |
| 3 | 3 | 80±0.2 |
| 4 | 4 | 180±0.2 |
| 5 | 5 | R2±0.05 |
| 6 | 6 | S4±0.05 |
| 7 | 7 | 37° 0 -10′ |
| 8 | 8 | 14° 0 -10′ |
| 9 | 9 | Φ12 0/-0.05 |
| 10 | 10 | Φ50 |
| 11 | 11 | 20±0.2 |
| 12 | 12 | Φ75±0.2 |
| 13 | 13 | 5±0.5 |
| 14 | 14 | 10-30N force |
| 15 | 15 | IEC60529 |
Standard drawing:

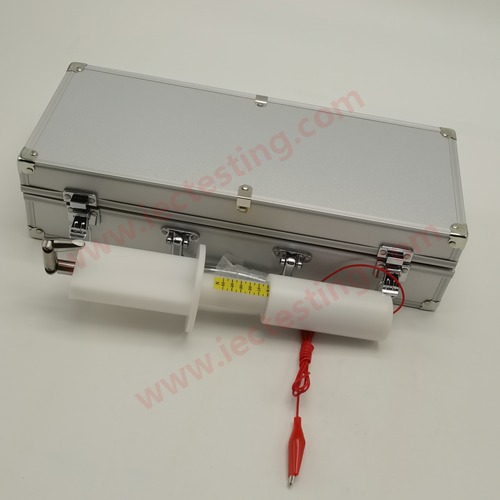

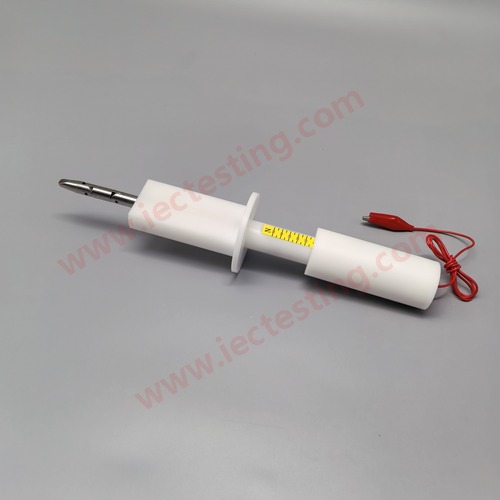

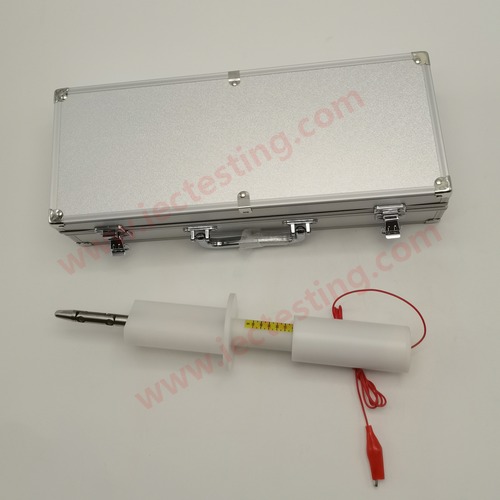

Product pictures:
