Rigid Test Finger Probe 11 with 75N Force IEC61032 Figure 7 SC-F711-F3
Product information:
Rigid test finger probe SC-F711-F3 conforms to the standard requirement of IEC61032 figure 7 device 11, IEC60884, IEC60598, IEC60335, IEC60065. It is the rigid test finger with 75N force (0-75N force applied through the dynamometer connection), used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strength of openings in the enclosure or internal barriers.
Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Technical parameters:
| Parameters / Model | SC-F711-F3 | |
|---|---|---|
| Name | Name | Test finger with 75N force |
| 1 | 1 | 20 0/-0.05 |
| 2 | 2 | 80±0.2 |
| 3 | 3 | R2±0.05 |
| 4 | 4 | S4±0.05 |
| 5 | 5 | 37° 0 -10′ |
| 6 | 6 | 14° 0 -10′ |
| 7 | 7 | Φ12 0/-0.05 |
| 8 | 8 | —- |
| 9 | 9 | —- |
| 10 | 10 | 0-75N force |
Related products:

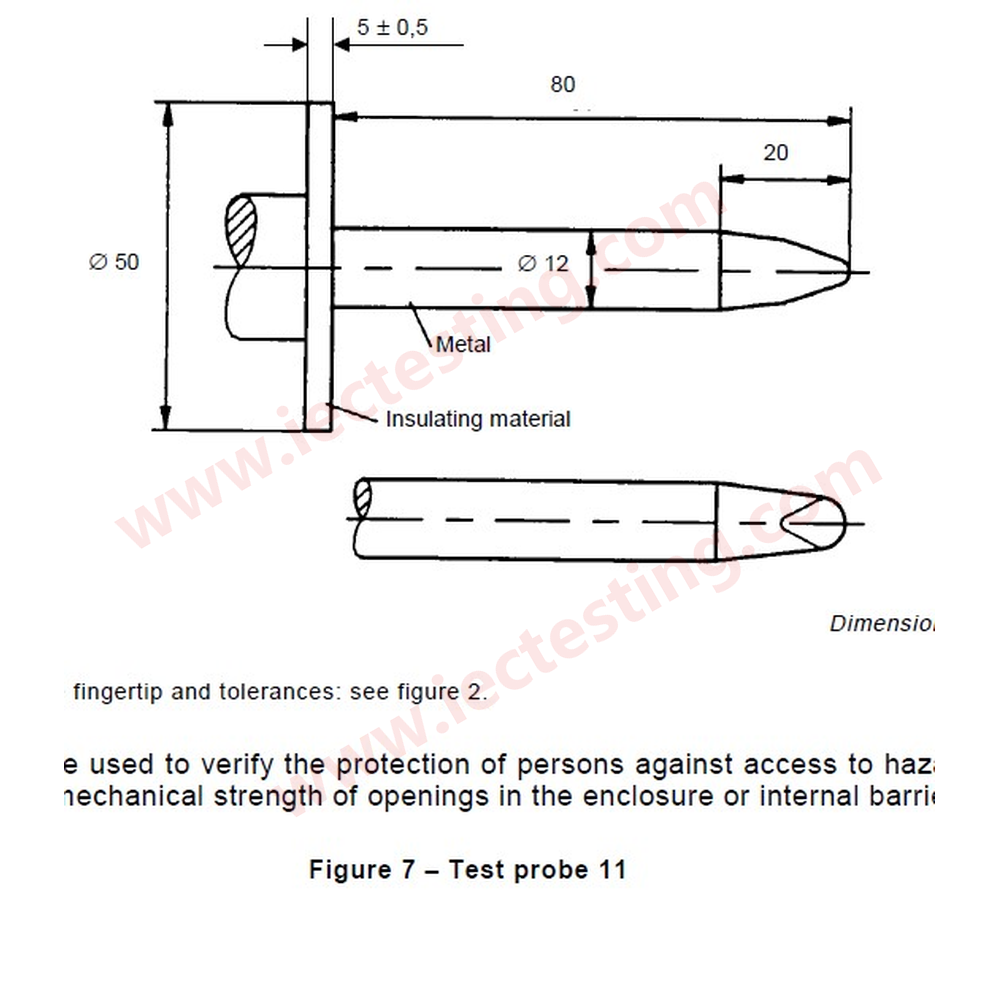

Standard drawing:
