SC-F1641 IEC 61032 Figure 16 Test Probe 41
Product overview
This IEC 61032 Figure 16 Test Probe 41 is a specialized test cone built specifically to check if hazardous hot or glowing parts in electrical appliances are out of users’ reach. It has a tapered cone shape with precise dimensions—key for mimicking accidental human contact with hot components. Made from heat-resistant stainless steel, it won’t warp or damage even when used near high-temperature parts. Lightweight but rigid, it’s easy to handle during tests, making it reliable for safety compliance checks on heaters, toasters, and ovens, while fully meeting global safety standards.
Specifications
- • Probe Type: IEC 61032 Test Probe 41 (test cone for hot/glowing parts)
- • Cone Taper: 1:5 (standardized to simulate accidental human contact)
- • Total Length: 100 mm ± 0.2 mm
- • Effective Working Length: 80 mm
- • Base Diameter: 10 mm ± 0.1 mm
- • Material: Heat-resistant stainless steel (resists deformation near high temperatures)
- • Applied Force: No appreciable force (mimics light, accidental contact)
- • Core Function: Verifies inaccessibility of hazardous hot or glowing components in appliances
- Test Procedures:
- • Check the test cone for damage (like dents or rust) that could affect results.
- • Turn on the appliance and let it reach operating temperature (until hot/glowing parts activate).
- • Gently guide the test cone’s tip toward access points near hot/glowing parts.
- • See if the cone touches any hazardous hot or glowing components.
- • Record if the parts stay inaccessible (pass/fail).
Test procedure
- • Check the test cone for damage (like dents or rust) that could affect results.
- • Turn on the appliance and let it reach operating temperature (until hot/glowing parts activate).
- • Gently guide the test cone’s tip toward access points near hot/glowing parts.
- • See if the cone touches any hazardous hot or glowing components.
- • Record if the parts stay inaccessible (pass/fail).
Applications
- • Verifying accessibility of hazardous hot/glowing parts in electrical appliances.
- • Safety compliance testing for heaters, toasters, ovens, and similar devices.
- • Simulating accidental human contact with high-temperature components.
- • IEC 61032 Figure 15 standard conformance checks for appliance safety.
- • High-temperature environment safety validation for electrical equipment.
- Test Probe 41 of IEC 61032 – Test Cone for Access Probes to Hazardous Hot or Glowing Parts

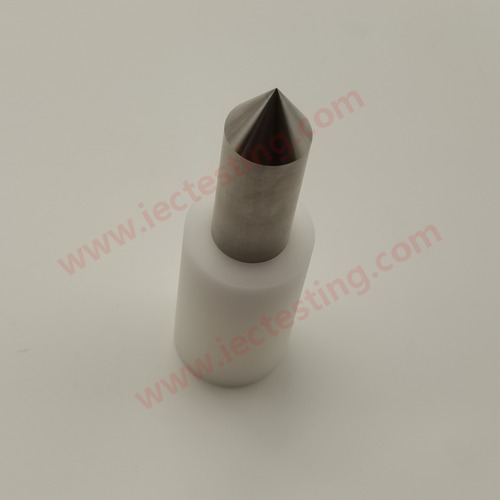

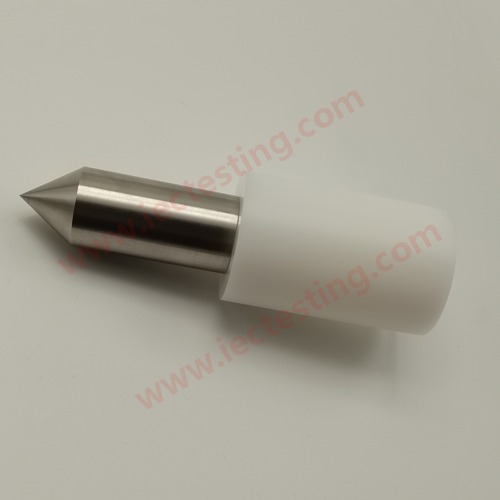

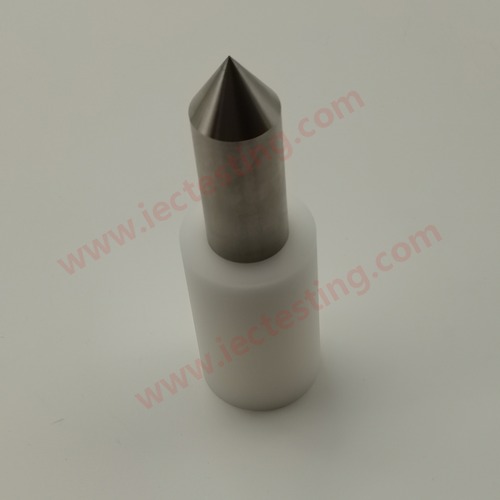

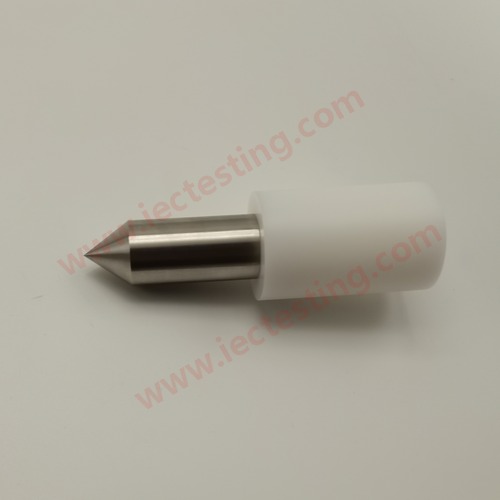

Product pictures

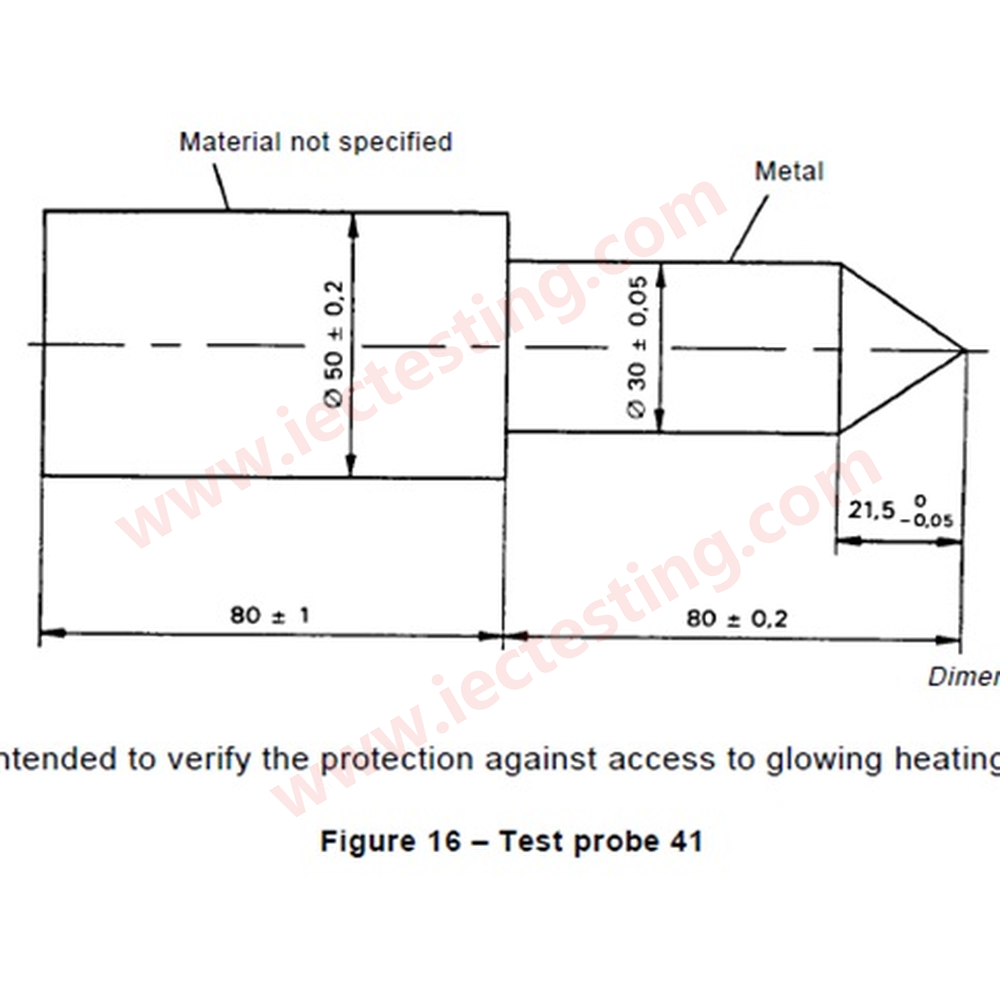

Standard drawing
