Test Rod Probe D IEC61032 Figure 4 IEC60529 IP4X SC-F4D
Product information:
This probe conforms to the standard requirement of IEC61032 figure 4 test probe D and IEC60529 for IP4 and IEC60065. This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.
Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer). The probe whose model number is with “F” is with force.
Technical parameters:
| Parameters / Model | SC-F4D | SC-F4D-F | |
|---|---|---|---|
| Name | Name | Test rod probe D | Test rod probe D with force |
| 1 | 1 | Φ1 +0.05/0 | Φ1 +0.05/0 |
| 2 | 2 | SΦ35±0.2 | SΦ35±0.2 |
| 3 | 3 | Φ10 | Φ10 |
| 4 | 4 | 100±0.2 | 100±0.2 |
| 5 | 5 | 100 | —- |
| 6 | 6 | —- | 3N force |
| 14 | 14 | IEC61032.1 | IEC60529 |

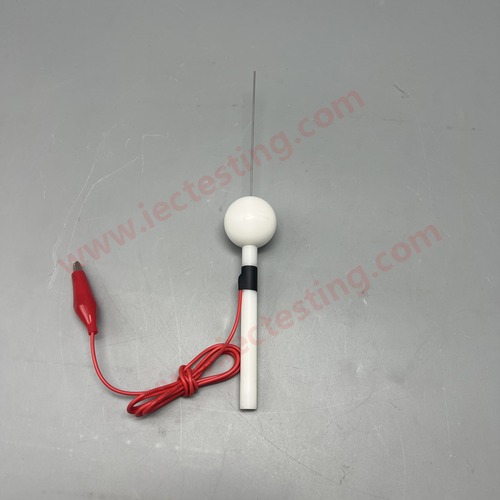

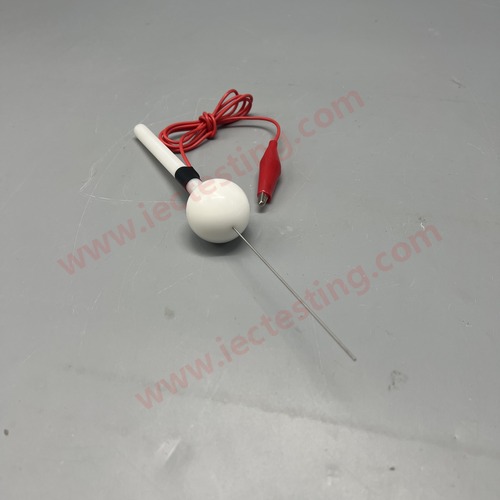

Product pictures:
