NF C61-314 French and DIN VDE 0620-1 German Plug and Socket Gauges 16 pcs Combined Batch Delivery

DIN VDE 0620-1 gauge set Lehre5D Lehre10A Lehre10B Lehre14 Lehre16a Lehre19a

Guangzhou Shice Instrument Equipment Co., Ltd. has finished the production, inspection and packing of a combined batch of gauges for the French standard NF C61-314 and the German standard DIN VDE 0620-1 plugs and socket-outlets, 16 pcs in total, and delivered them as one shipment.

The batch covers 6A / 16A household and similar plugs and socket-outlets. The inspection items include impossibility of single-pole insertion, maximum opening of the contact tubes, distance from the socket contact face to the copper clamping piece, minimum withdrawal force of plugs and sockets, acceptance of two-pole plugs, measuring the force of socket shutters, pin diameter and pin spacing, gauge for the interval until first contact closing, grounds on both sides, and maximum withdrawal force. All gauges are machined from imported Japanese die steel, heat treated and rust proofed, and are supplied with calibration data, suitable for routine inspection and sampling of plugs and socket-outlets.

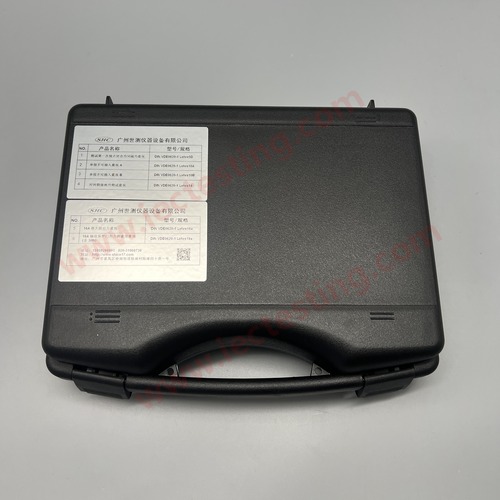

DIN VDE 0620-1 German standard plug and socket gauges, 6 pcs set in case with product labels
DIN VDE 0620-1 German standard plug and socket gauges, 6 pcs set in case with product labels

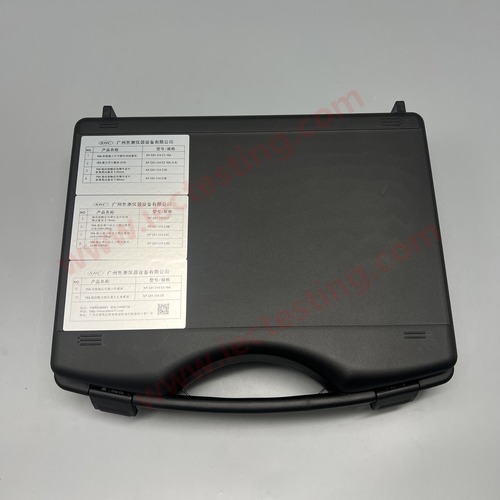

NF C61-314 French standard plug and socket gauges, 10 pcs set in case with product labels
NF C61-314 French standard plug and socket gauges, 10 pcs set in case with product labels

1. Delivery list

No. Product name Standard & model Qty (pcs)
1 Gauge for checking impossibility of single-pole insertion of plugs, 16A NF C61-314 C1-16A 1
2 Gauge for maximum opening, 5.8 mm, 16A NF C61-314 C2-16A 1
3 Gauge for distance from socket contact face to copper clamping piece, 5.45 mm, 16A NF C61-314 C3D 1
4 Gauge for distance from socket contact face to copper clamping piece, 5.60 mm, 16A NF C61-314 C3E 1
5 Gauge for distance from socket contact face to copper clamping piece, 5.75 mm, 16A NF C61-314 C3F 1
6 Gauge for minimum withdrawal force of socket, 3.8 mm (200+200 g), 16A NF C61-314 C4B 1
7 Gauge for minimum withdrawal force of plug, 4.6 mm (200+200 g), 16A NF C61-314 C4C 1
8 Gauge for minimum withdrawal force of plug, 4.86 mm (2500 g), 16A NF C61-314 C4D 1
9 Gauge for acceptance of two-pole plugs, 16A NF C61-314 C5-16A 1
10 Gauge for maximum opening width of contact tubes, 16A NF C61-314 C6 1
11 Gauge for checking the interval until the first closing of the contacts DIN VDE 0620-1 Lehre 5D 1
12 Single-pole non-insertion gauge A DIN VDE 0620-1 Lehre 10A 1
13 Single-pole non-insertion gauge B DIN VDE 0620-1 Lehre 10B 1
14 Gauge for checking both sides of the ground contacts DIN VDE 0620-1 Lehre 14 1
15 Gauge for maximum withdrawal force, 16A DIN VDE 0620 Lehre 16a 1
16 Gauge for measuring the force of socket shutters, 16A (with 30N weight) DIN VDE 0620 Lehre 19a 1

2. What each gauge is used for

French standard NF C61-314 (10 pcs)

  • NF C61-314 C1-16A – gauge for checking the impossibility of single-pole insertion of plugs, 16A.
  • NF C61-314 C2-16A – gauge for the maximum opening of the contact tubes, Φ5.8 mm.
  • NF C61-314 C3D / C3E / C3F – gauges for the distance from the socket contact face to the copper clamping piece: 5.45 / 5.60 / 5.75 mm.
  • NF C61-314 C4B – gauge for the minimum withdrawal force of the socket, 3.8 mm, with 200+200 g weights.
  • NF C61-314 C4C – gauge for the minimum withdrawal force of the plug, 4.6 mm, with 200+200 g weights.
  • NF C61-314 C4D – gauge for the minimum withdrawal force of the plug, 4.86 mm, with 2500 g weight.
  • NF C61-314 C5-16A – gauge for the acceptance of two-pole plugs, 16A.
  • NF C61-314 C6 – gauge for the maximum opening width of the contact tubes, 16A.

German standard DIN VDE 0620-1 (6 pcs)

  • DIN VDE 0620-1 Lehre 5D – gauge for checking the interval until the first closing of the contacts.
  • DIN VDE 0620-1 Lehre 10A / 10B – single-pole non-insertion gauges A and B.
  • DIN VDE 0620-1 Lehre 14 – gauge for checking both sides of the ground contacts.
  • DIN VDE 0620 Lehre 16a – gauge for the maximum withdrawal force, 16A.
  • DIN VDE 0620 Lehre 19a – gauge for measuring the force of socket shutters, 16A, with 30N weight.

3. Case open pictures

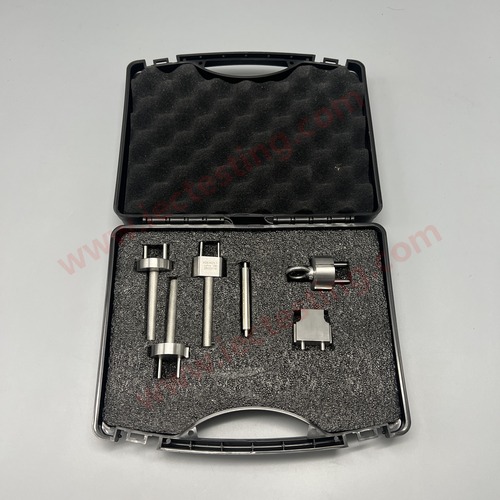

DIN VDE 0620-1 German standard gauges case open
DIN VDE 0620-1 German standard gauges case open

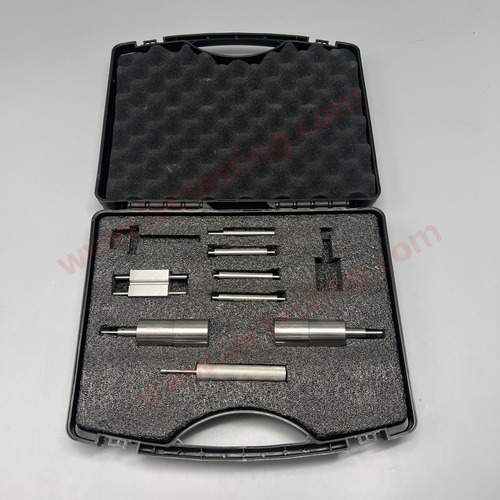

NF C61-314 French standard gauges case open
NF C61-314 French standard gauges case open

4. Gauge details

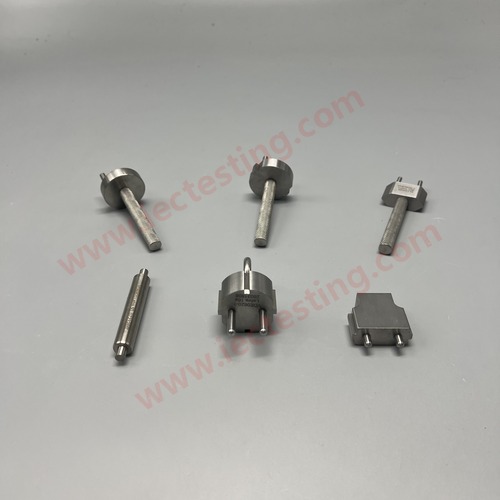

DIN VDE 0620-1 gauge set: Lehre 5D, Lehre 10A, Lehre 10B, Lehre 14, Lehre 16a, Lehre 19a
DIN VDE 0620-1 gauge set: Lehre 5D, Lehre 10A, Lehre 10B, Lehre 14, Lehre 16a, Lehre 19a

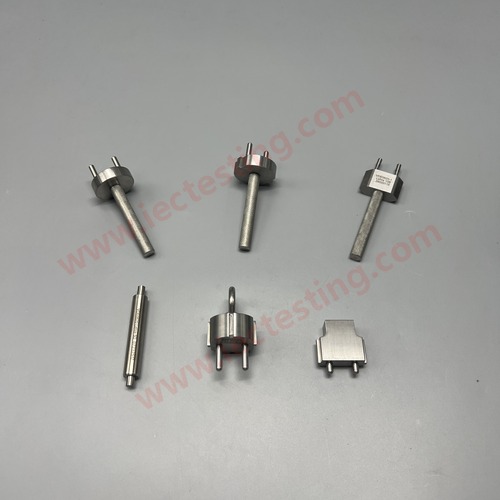

DIN VDE 0620-1 gauge set, another view
DIN VDE 0620-1 gauge set, another view

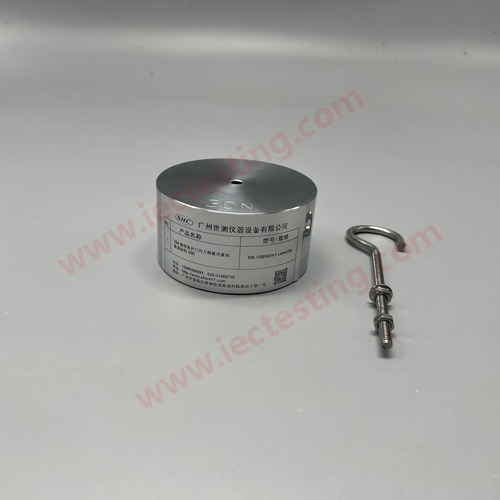

DIN VDE 0620-1 Lehre 19a socket shutter force measuring gauge with 30N weight and hook
DIN VDE 0620-1 Lehre 19a socket shutter force measuring gauge with 30N weight and hook

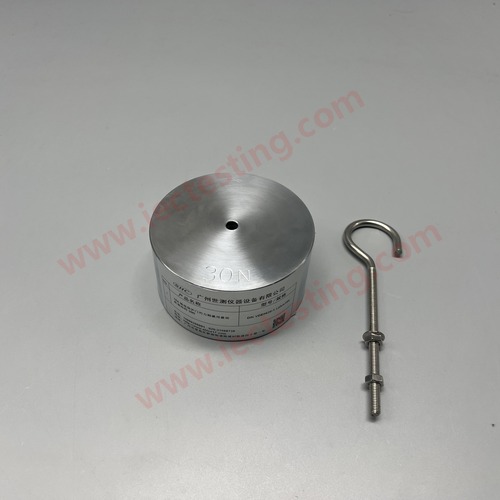

Lehre 19a gauge with 30N weight and hook, another view
Lehre 19a gauge with 30N weight and hook, another view

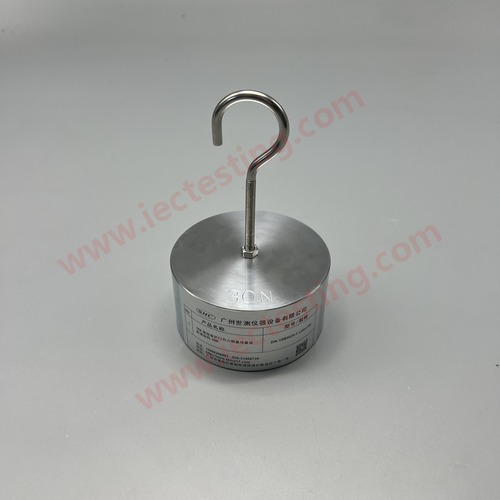

Lehre 19a gauge, 30N weight and hook assembled
Lehre 19a gauge, 30N weight and hook assembled

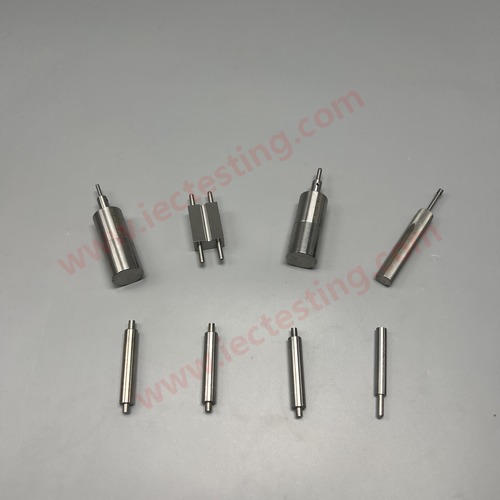

NF C61-314 gauge set: C1-16A, C2-16A, C3D / C3E / C3F, C4B / C4C / C4D, C5-16A, C6
NF C61-314 gauge set: C1-16A, C2-16A, C3D / C3E / C3F, C4B / C4C / C4D, C5-16A, C6

5. Related products

All gauges in this batch can be found with their full specifications, standard drawings and technical parameters on our site:

Gauges and test apparatus for other standards (GB/T 2099, IEC 60884, BS 1363, UL 498, AS/NZS 3112, TIS 166, CNS 690 and more) can also be manufactured to customer drawings. Please feel free to contact us.
