Test Sphere Probe A IEC61032 Figure 1 IEC60529 IP1X SC-F1A
Product information:
It conforms to the standard requirements of IEC61032 figure 1, IEC60529 IP1 and IEC60065. This probe is intended to verify the protection of the back of hand of persons against access to hazardous parts. It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.

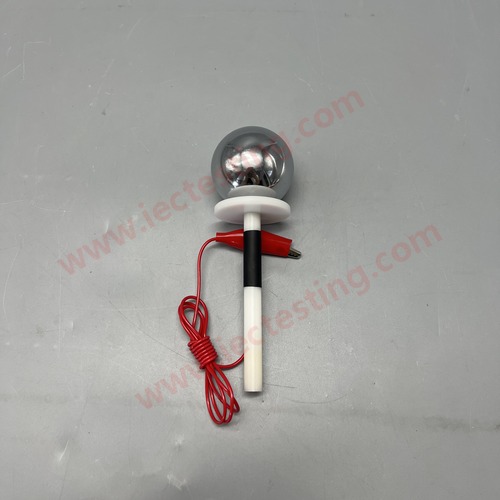

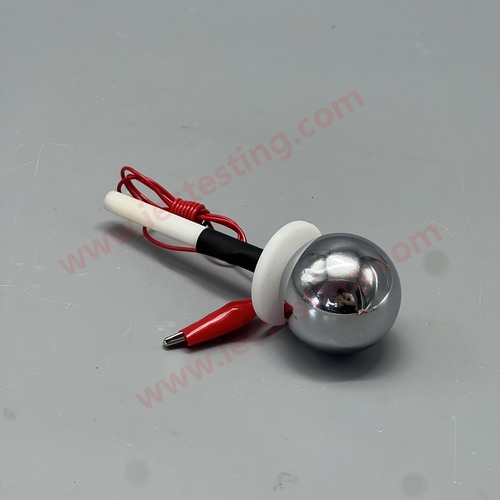

This test probe can be customized. It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer). The probe whose model number is with “F” is with force.

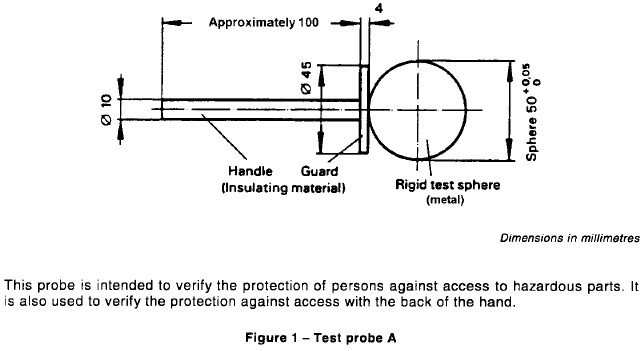

Technical parameters:
| Parameters / Model | SC-F1A | SC-F1A-F | |
|---|---|---|---|
| Name | Name | Test probe A | Test probe A with force |
| 1 | 1 | SΦ50 +0.05/0 | SΦ50 +0.05/0 |
| 2 | 2 | Φ45±0.2 | Φ45±0.2 |
| 3 | 3 | Φ10 | Φ10 |
| 4 | 4 | 4 | 4 |
| 5 | 5 | 100 | 100 |
| 6 | 6 | —- | With force of 50N |
| 7 | 7 | IEC61032 | IEC60529 |

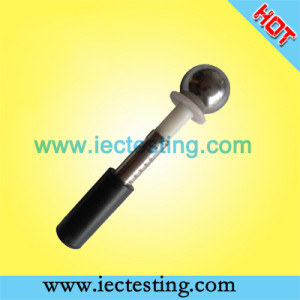

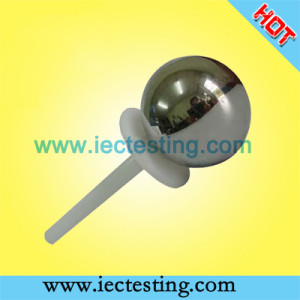

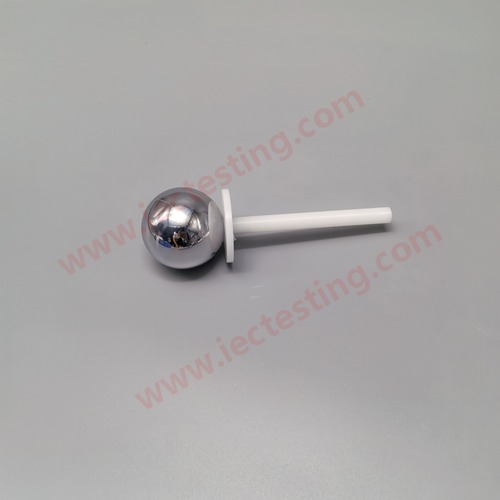

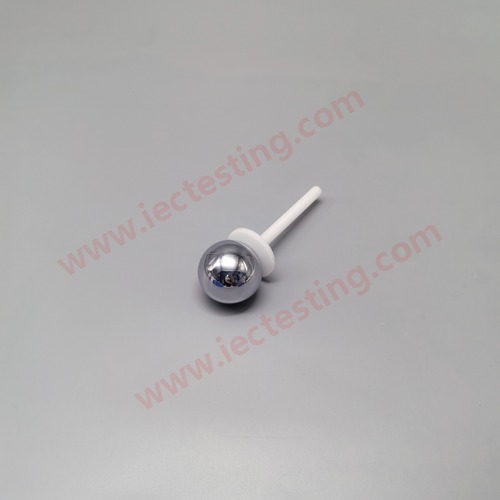

Product pictures:
