IEC 80601-2-89 Figure 201.103c Cylinder Tool SC-80601F201103C :
Product No: SC-80601F201103C
Standard requirement: IEC 80601-2-89:2025 Medical electrical equipment – Part 2-89: Particular requirements for the basic safety and essential performance of medical beds for children (Clause 201.5.101 – Entrapment test TOOLS). The standard illustrates a set of entrapment test tools — a cone tool, a finger probe for mesh, a cylinder tool and a ball chain loop with spherical mass (Figure 201.103 a, b, c and e) — that are applied to the openings and gaps of a MEDICAL BED (side rails, protection panels, mattress support platform and perimeter areas) to verify that patient body parts cannot become trapped during normal use and adjustment of the bed.
Application
The cylinder tool (Figure 201.103c) is applied to the openings and gaps of the medical bed — for example between side rail sections, between the side rail and the mattress support platform, and around protection panels. It verifies that openings which admit the cylinder do not create an entrapment hazard for a patient’s limb, and that gaps remain within the limits permitted by Clause 201.5.101.
Construction

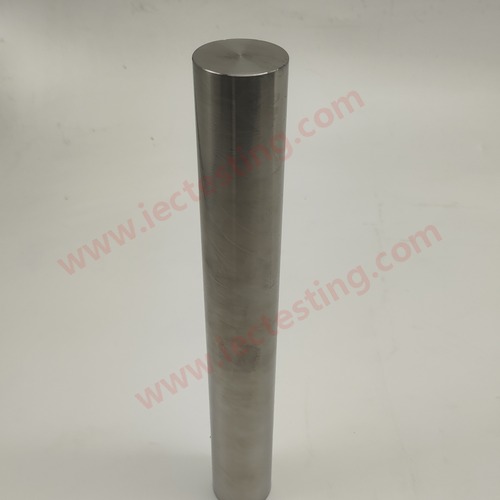

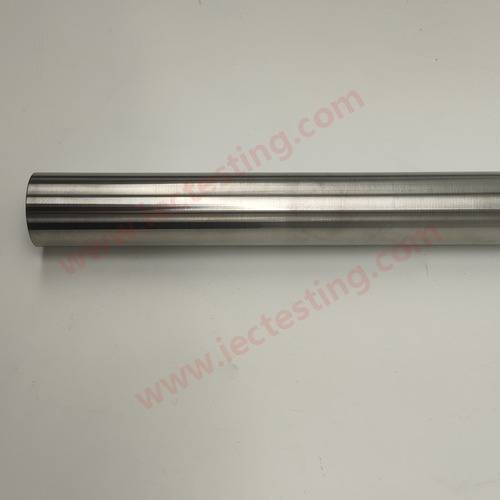

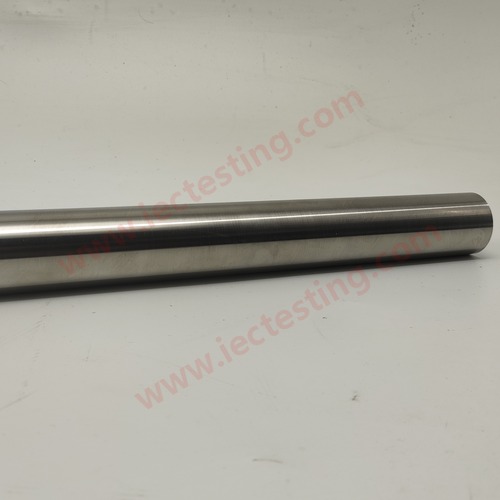

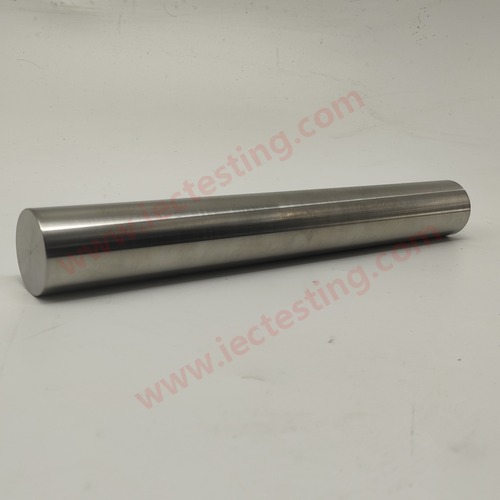

- Precision-machined stainless steel cylinder, Ø40 mm nominal × 300 mm long
- Drilling hole provided for weight adjustment, if necessary
- Low surface roughness (≤ 1.6 μm) so the result is not affected by friction
Key specification
| Diameter | Ø40 mm (−0.5/0) |
| Length | 300 mm (+1/0) |
| Total weight | 3.3 kg ± 0.05 kg |
| Surface roughness | ≤ 1.6 μm |
| Material | Stainless steel |
| Reference | IEC 80601-2-89 Figure 201.103c |
Product pictures

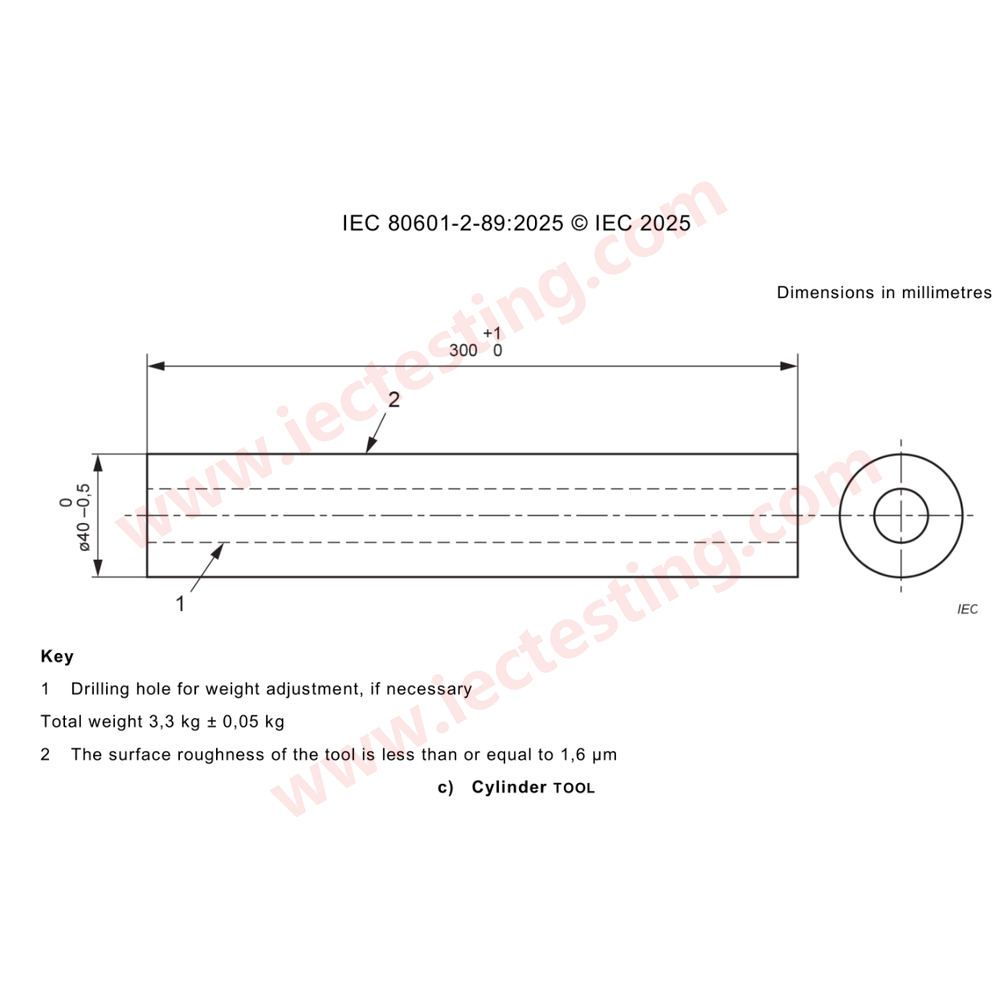

Standard drawing
Other entrapment test tools of this series
