IEC 80601-2-89 Figure 201.103e Ball Chain Loop and Spherical Mass SC-80601F201103E

IEC 80601-2-89 Figure 201.103e Ball Chain Loop and Spherical Mass SC-80601F201103E :

Product No: SC-80601F201103E

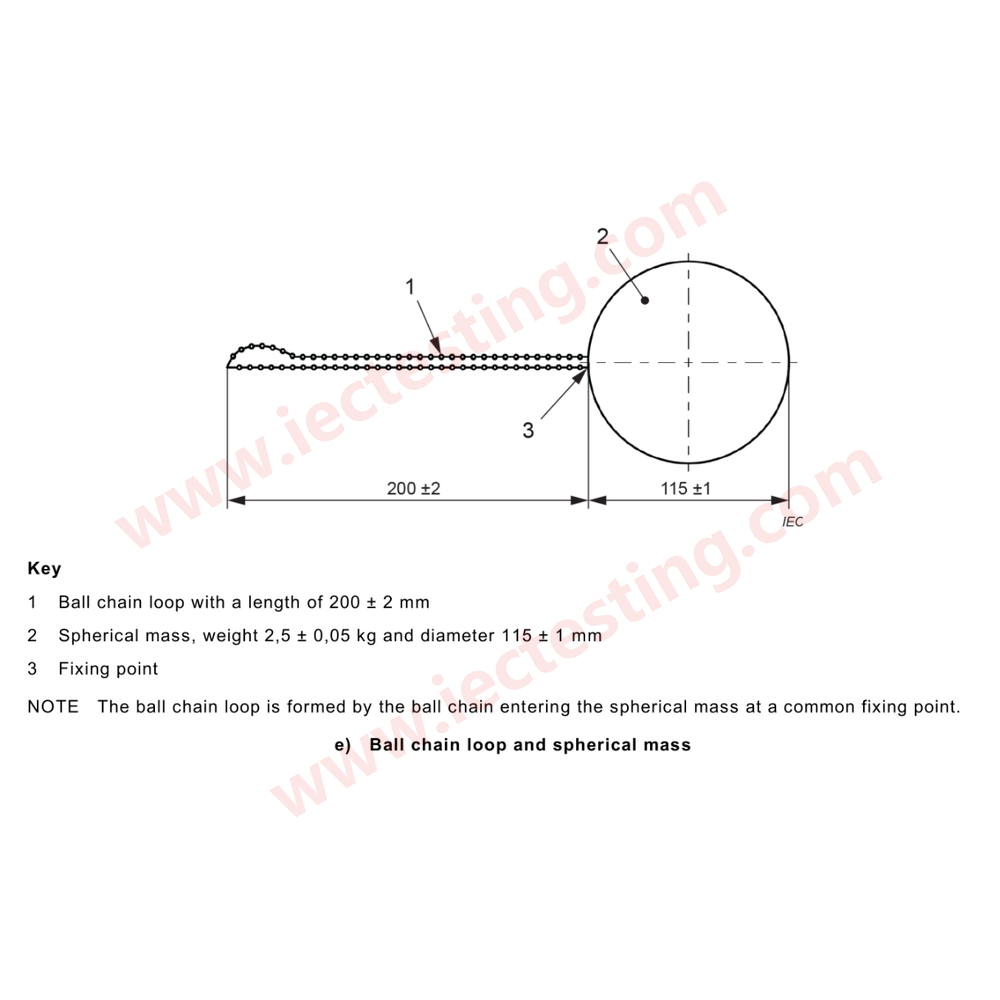

Standard requirement: IEC 80601-2-89:2025 Medical electrical equipment – Part 2-89: Particular requirements for the basic safety and essential performance of medical beds for children (Clause 201.5.101 – Entrapment test TOOLS). The standard illustrates a set of entrapment test tools — a cone tool, a finger probe for mesh, a cylinder tool and a ball chain loop with spherical mass (Figure 201.103 a, b, c and e) — that are applied to the openings and gaps of a MEDICAL BED (side rails, protection panels, mattress support platform and perimeter areas) to verify that patient body parts cannot become trapped during normal use and adjustment of the bed.

Application

The ball chain loop with spherical mass (Figure 201.103e) is used to verify entrapment and retention hazards related to loops and spherical body positions: the spherical mass represents the patient’s head or another rounded body part, and the ball chain loop represents a cord or chain that could become caught. The assembly is applied to the openings of the medical bed to check that the loop and the spherical mass cannot create an entrapment hazard.

Construction

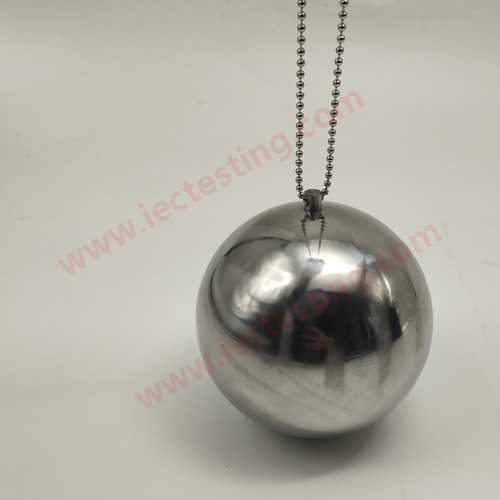

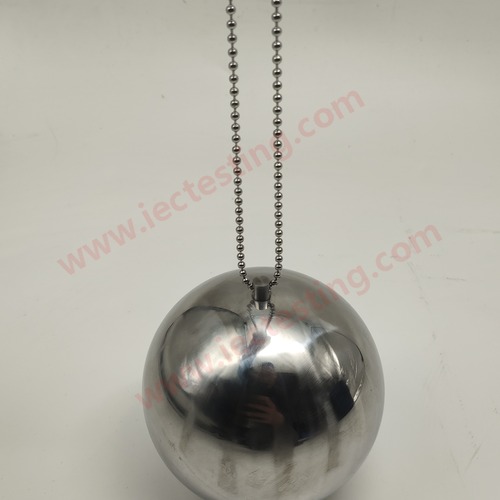

Stainless steel spherical mass with high-gloss polished finish

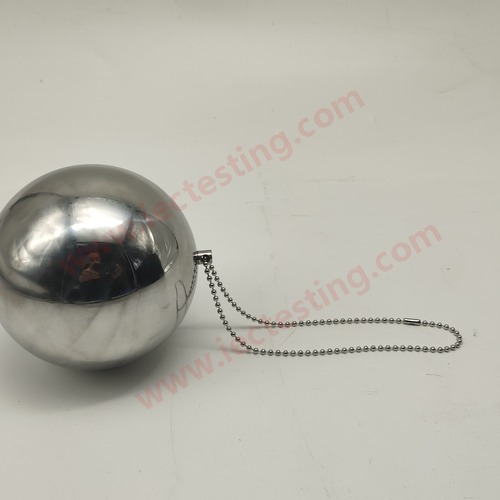

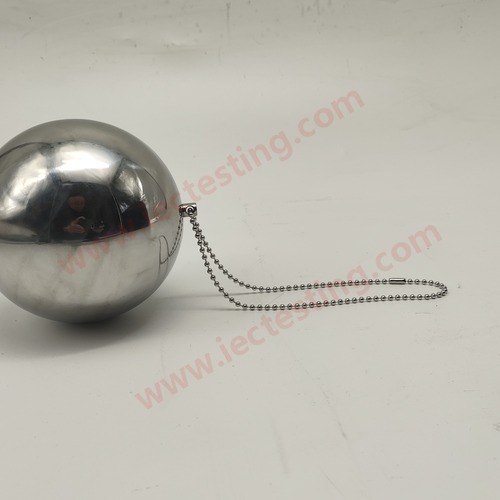

Ball chain loop entering the spherical mass at a common fixing point, per the standard’s NOTE
Loop length adjustable to the specified dimension at the fixing point

Key specification

Ball chain loop length	200 mm ± 2 mm
Spherical mass weight	2.5 kg ± 0.05 kg
Spherical mass diameter	115 mm ± 1 mm
Fixing	Common fixing point (chain enters the mass at one point)
Material	Stainless steel
Reference	IEC 80601-2-89 Figure 201.103e
