SC-B5F22-15A
Product overview
BS 546:2025 Figure 22 gauge for verifying resistance to lateral stress, 15 A, model SC-B5F22-15A. It checks that a South African 15 A socket-outlet, with a plug inserted, withstands lateral (side) stress without permanent deformation or displacement of the contact tubes, the body or its fixing.
Standard: BS 546:2025 Figure 22. The gauge is a simulated plug built to the 15 A pin layout: a Ø50 mm disc body 9.06 mm thick, three pins on the face (earth Ø8.66 mm, current-carrying Ø7.01 mm) at 25.55 mm x 25.73 mm centres, pin length 29.0 mm, and a Ø5 / Ø4 loading stem at the rear for applying the force perpendicular to the engagement face.
Test procedure: insert the gauge fully into the socket-outlet, apply the lateral force specified in the standard through the loading stem (magnitude, direction and duration as required by the clause), then examine the contact tubes for displacement and the body and mounting surface for cracks or permanent deformation, and re-check insertion with the GO gauge.
Construction
- Ø50 mm disc body, hardened and ground, 9.06 ± 0.01 mm thick
- Pins to Figure 22: earth Ø8.66 (+0.02 / -0.02), current-carrying Ø7.01 (+0.02 / -0.02), 29.0 ± 0.1 mm long
- Pin centres 25.55 ± 0.03 mm x 25.73 ± 0.03 mm, verified on a CMM
- Ø5 ± 0.1 loading stem with a Ø4 section 42.0 ± 0.5 mm long for a force gauge or weights
- Measured dimension data and calibration certificate supplied with the goods
Technical parameters
| Model | SC-B5F22-15A |
| Standard | BS 546:2025 Figure 22 |
| Rating / poles | 15 A / 3-pin (2P+E) |
| Body OD / thickness | Ø50 mm / 9.06 ± 0.01 mm |
| Earth pin Ø | 8.66 mm (+0.02 / -0.02) |
| Current-carrying pin Ø | 7.01 mm (+0.02 / -0.02) |
| Pin length | 29.0 ± 0.1 mm |
| Pin spacing | 25.55 ± 0.03 mm x 25.73 ± 0.03 mm |
| Loading stem | Ø5 ± 0.1 mm, Ø4 section 42.0 ± 0.5 mm |
| Material | Stainless steel, hardened and ground, HRC 58 min. |

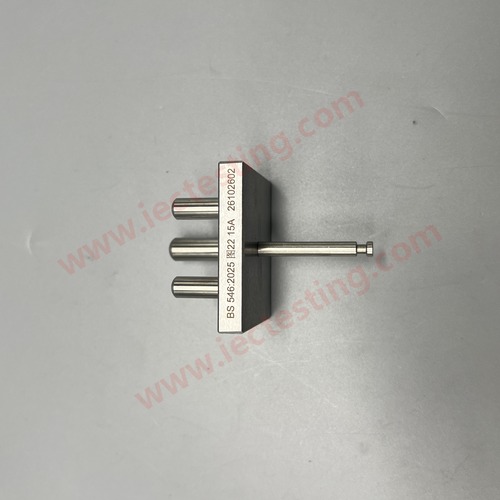

| Body stamp | BS 546:2025 图22 + serial number |

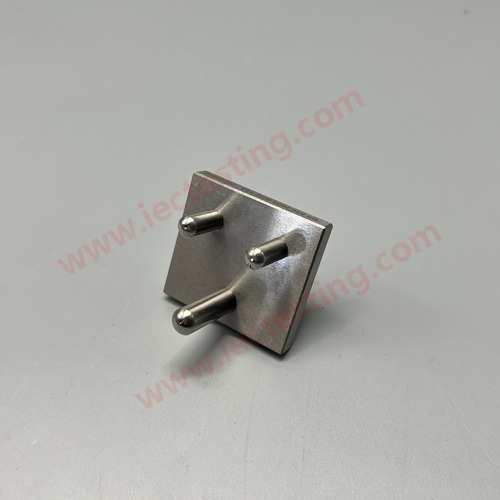

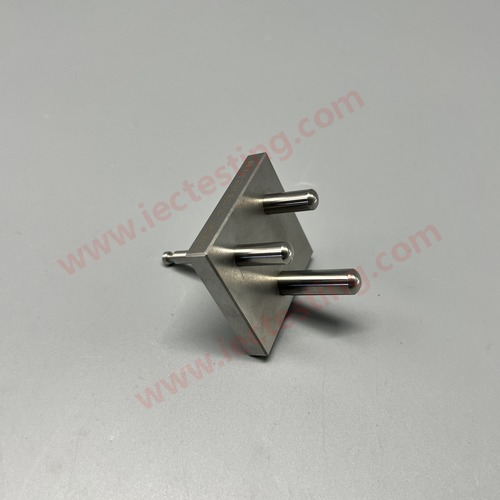

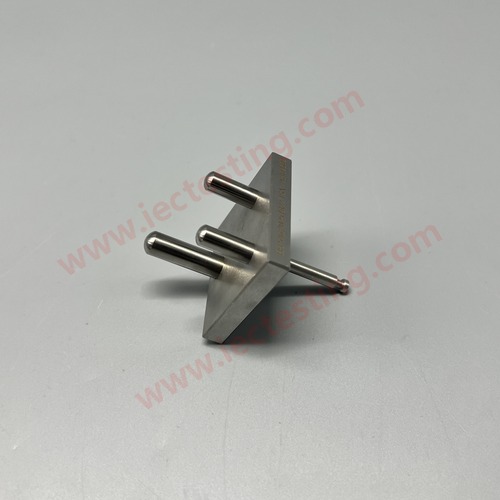

Product pictures

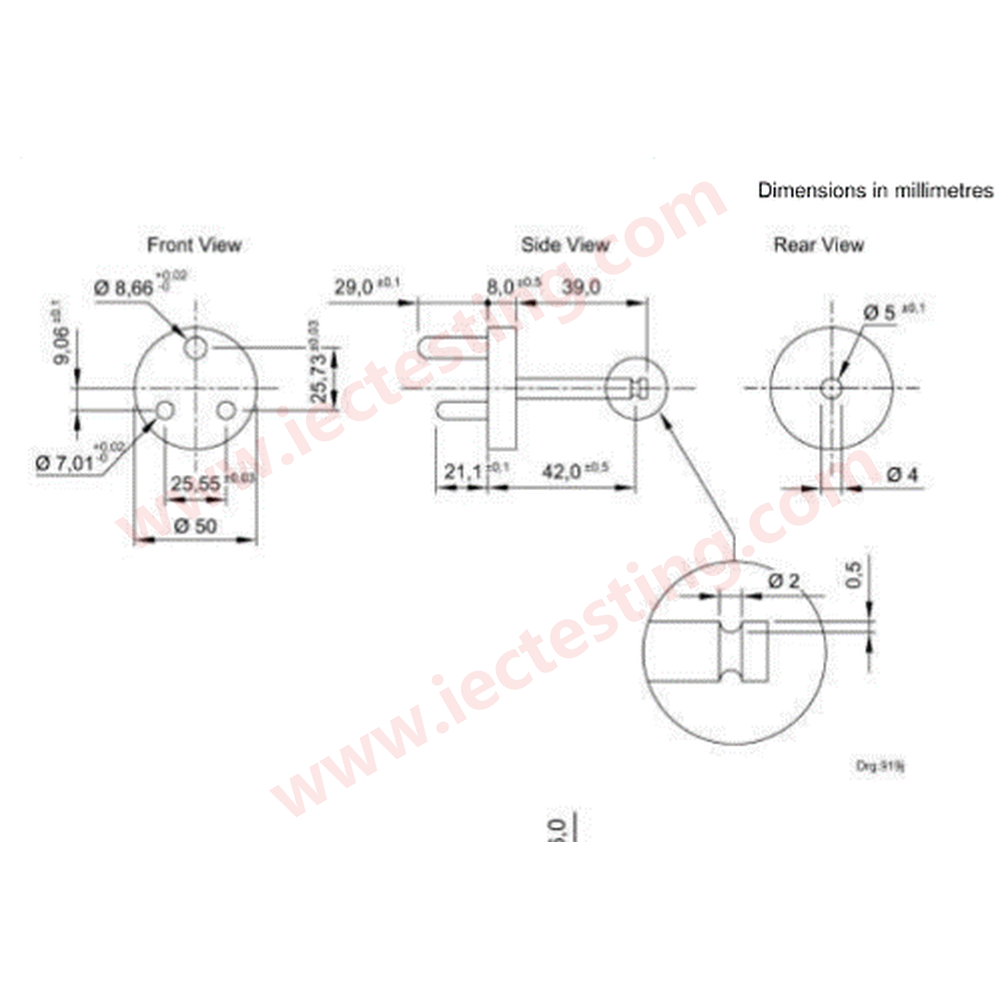

Standard drawing
