SC-S164D-15A
Product overview
SANS 164-1:2019 Annex D (normative) gauges D1 and D2, set of two, model SC-S164D-15A. They prove that, while any current-carrying pin of a plug is accessible, it is not possible to make a connection between a plug pin and a current-carrying contact of the socket-outlet – protection against single-pole insertion.
D1 and D2: D1 attempts simultaneous engagement of the earth pin with the neutral pin and of the earth pin with the live pin. D2 attempts engagement of the live and neutral pins while the earth pin is left exposed. The pin spacing differs (D1 29.20 mm, D2 25.40 mm) to match the two incorrect insertion modes.
Test procedure: insert each gauge as described. The gauge shall not fully engage and the indicator lamp between the gauge and both socket contact tubes shall not light. The force applied perpendicular to the gauge shall not exceed 20 N. The tests are made on socket-outlets with fully functional shutters.
Construction
- Set of two: D1 (earth + one current-carrying pin) and D2 (both current-carrying pins, earth pin exposed)
- D1: pin spacing 29.20 mm (+0.02 / 0), pin length 21.7 mm (+0.1 / 0), body 29.6 mm (+0.1 / 0) high
- D2: pin spacing 25.40 mm (+0.02 / 0), pin length 21.7 mm (+0.1 / 0), body 29.6 mm (+0.1 / 0) high
- Pin Ø: earth 8.66 mm (+0 / -0.01), current-carrying 7.01 mm (+0 / -0.01)

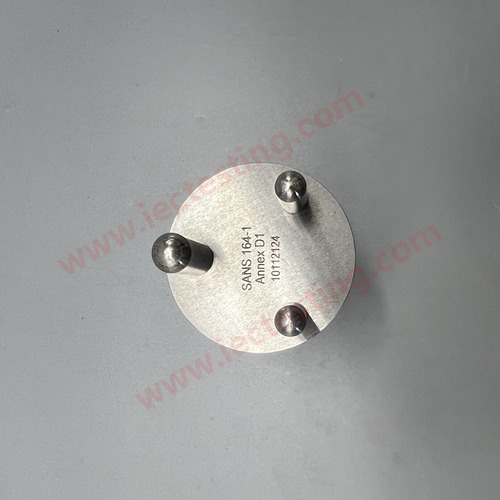

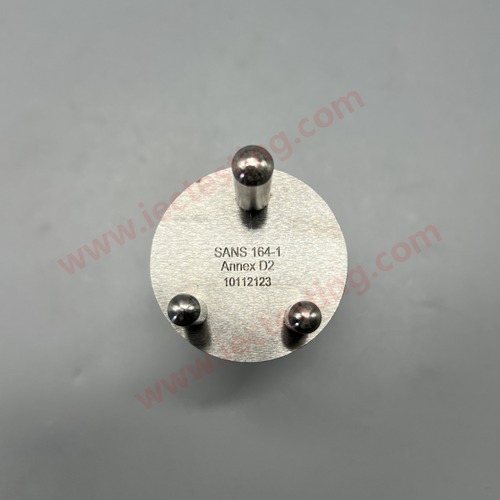

- Body stamp: SANS 164-1 Annex D D1 (or D2) plus serial number
Technical parameters
| Model | SC-S164D-15A |
| Standard | SANS 164-1 Annex D (normative) |
| Set content | 2 gauges (D1 + D2) |
| D1 pin spacing | 29.20 mm (+0.02 / 0) |
| D1 earth / current-carrying pin length | 29.6 mm (+0.1 / 0) / 21.7 mm (+0.1 / 0) |
| D1 pin steps | 21 ± 0.13 mm / 2.5 ± 0.13 mm, body 10.0 ± 1 mm |
| D2 pin spacing | 25.40 mm (+0.02 / 0) |
| D2 earth / current-carrying pin length | 29.6 mm (+0.1 / 0) / 21.7 mm (+0.1 / 0) |
| D2 pin steps | 21 mm / 2.1 ± 0.13 mm, body 10.0 ± 1 mm |
| Pin Ø | earth 8.66 mm (+0 / -0.01), current-carrying 7.01 mm (+0 / -0.01) |
| Applied force | 20 N max., perpendicular to the gauge |
| Material | Hard, corrosion-resistant stainless steel |
| Body stamp | SANS 164-1 Annex D D1 / D2 + serial number |
SANS 164-1 Annex D – comparison of D1 and D2
| Item | Gauge D1 | Gauge D2 |
| Pin spacing | 29.20 mm (+0.02 / 0) | 25.40 mm (+0.02 / 0) |
| Earth pin length | 29.6 mm (+0.1 / 0) | 29.6 mm (+0.1 / 0) |
| Current-carrying pin length | 21.7 mm (+0.1 / 0) | 21.7 mm (+0.1 / 0) |
| Pin steps | 21 ± 0.13 / 2.5 ± 0.13 mm | 21 / 2.1 ± 0.13 mm |
| Insertion attempted | Earth + neutral, or earth + live | Live + neutral, earth pin exposed |
| Acceptance | Shall not fully engage, lamp shall not light | Shall not fully engage, lamp shall not light |

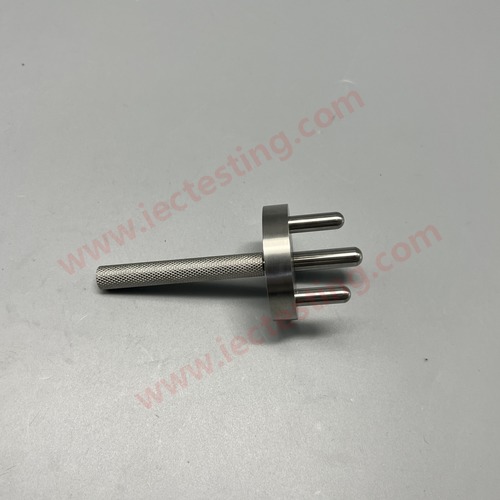

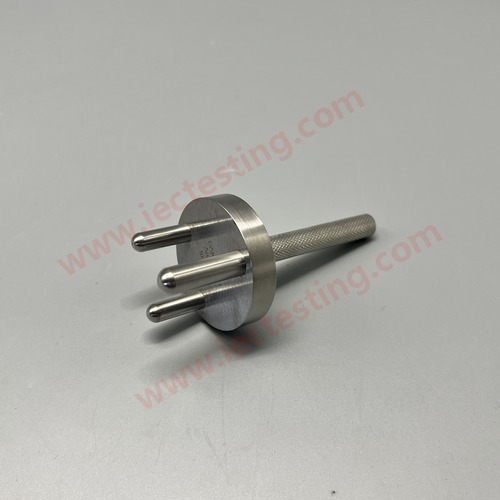

Product pictures

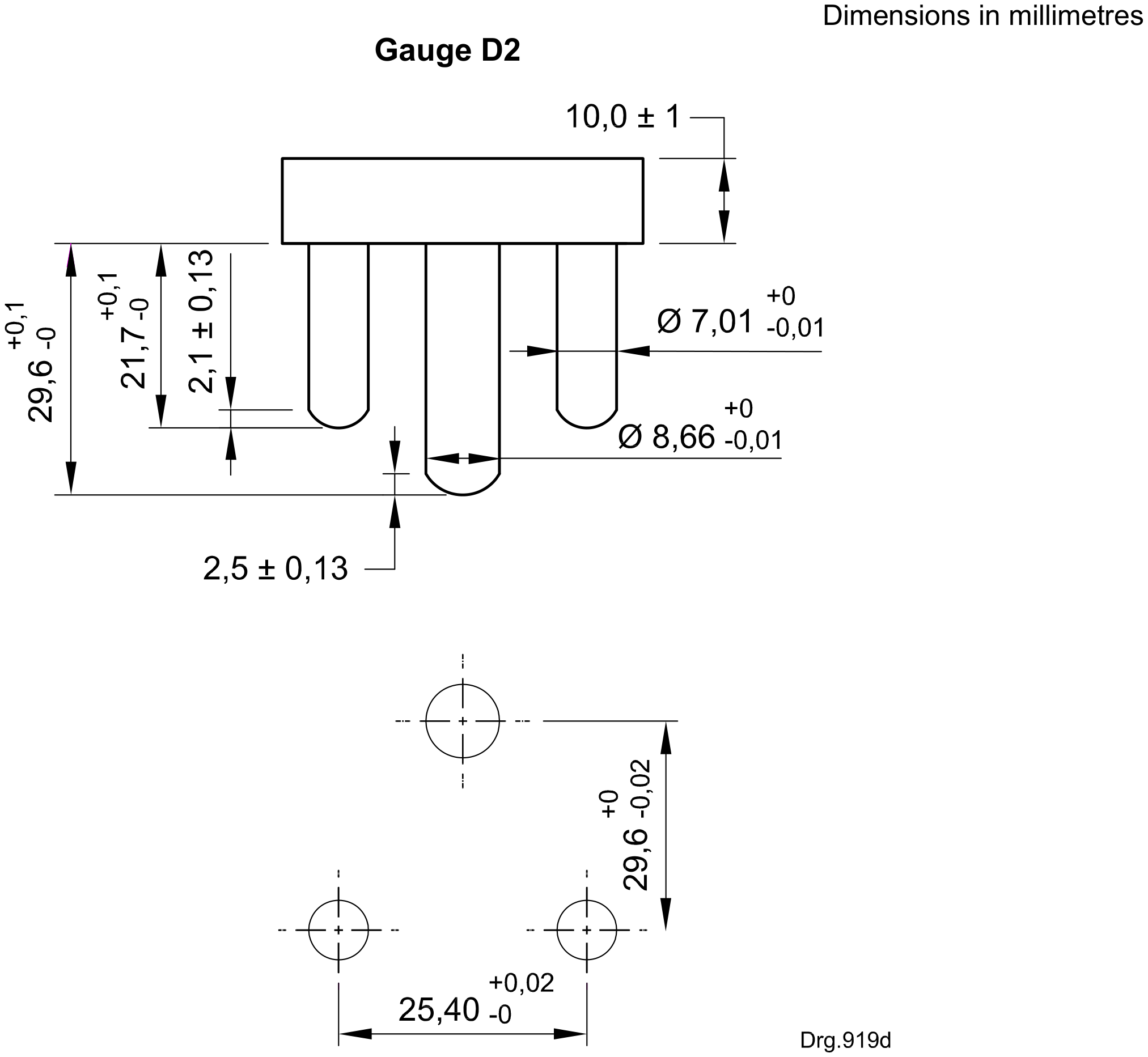

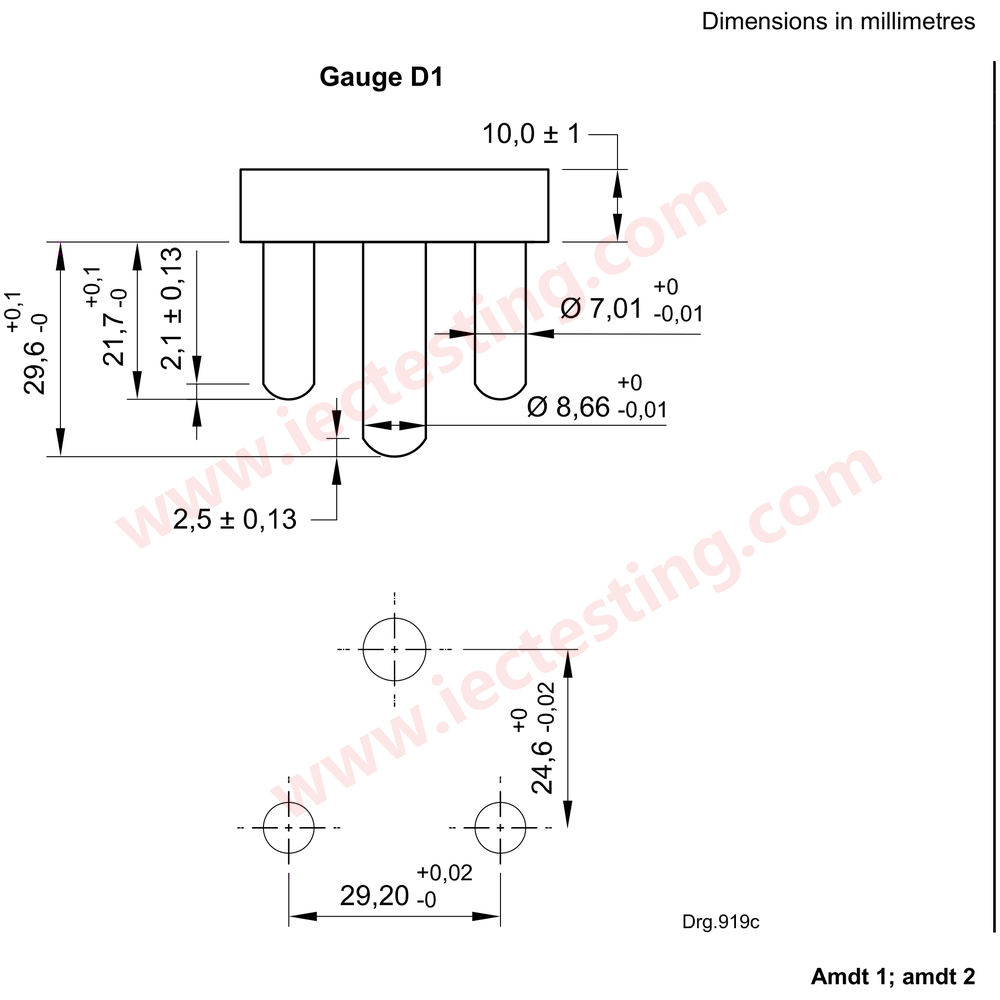

Standard drawing
